Highlight:
12*32*10 Bearing
, 6201 2RZ Deep Groove Ball Bearing
, 12x32x10 Bearing

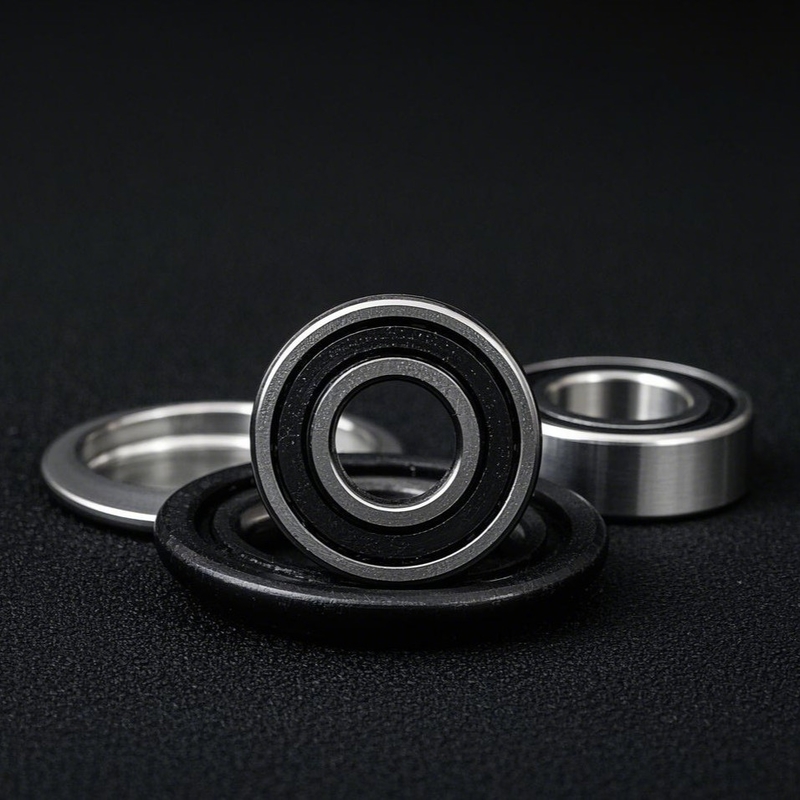

6201 2RZ C0 Deep Groove Ball Bearing Single Row 12x32x10 Bearing
6201 2RZ C0 Deep Groove Ball Bearings Single Row 12*32*10mm Centrifugal Pumps
The 6201 2RZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number |
Dimensions(mm) |
Basic Load Rating(N) |
Limiting Speed(rpm) |
Weight(Kg) |
| Inner Diameter |
Outer Diameter |
Width |
Chamfer |
Dynamic |
Static |
Grease |
Oil |
| d |
D |
B |
r(min) |
Cr |
Cor |
Non-contact |
Non-contact |
Reference |
| 6201 2RZ |
12 |
32 |
10 |
0.6 |
6800 |
3050 |
17000 |
/ |
0.036 |
| Ring Material |
Chrome Steel |
| Roller Material |
Chrome Steel |
| Cage |
Steel |
| Lubrication |
Grease |
| Measurement Unit |
Metric |
| Seal Type |
ZZ(2RS,2RZ, open types are available) |
| Temperature Range |
-30°C ~ +150°C |
| CERTIFICATE |
RoHS, IATF16949:2016 |
| Feature |
Long Life,Low Noise,High Speed |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
| Size |
Standard,For custom sizes ,please contact us |
| Bearing Type |
Ball |
| For Load Direction |
Radial |
| Construction |
Single Row |
| Tolerance Class |
P6,P5 |
| Radial Clearance |
C0 |
Requirements for Bearings in Centrifugal Pumps.
Centrifugal pumps typically require 2 sets of bearings, with the following specifications:
-
Low Noise: The bearings must ensure quiet operation.
-
Speed: They should be capable of operating at speeds ranging from 2850 to 3500 RPM.
-
Temperature Range: They need to function reliably within an operating temperature range of -20°C to 120°C.
-
Low Starting Torque: The bearings should require minimal torque to start, ensuring easy startup.
What's the Performance Features of 6201 2RZ Bearings in Centrifugal Pumps?
The 6201 2RZ bearing is well-suited for centrifugal pumps, providing quiet operation to ensure a low-noise environment. It supports high-speed performance, operating efficiently at speeds ranging from 2850 to 3500 RPM. Designed for reliability, it functions effectively within an operating temperature range of -20°C to 120°C. The bearing features low starting torque, ensuring easy startup with minimal effort. Its double rubber seals prevent water ingress and retain lubricant, enhancing durability and reducing maintenance needs. Overall, the 6201 2RZ bearing meets the specific requirements of centrifugal pumps, offering smooth, reliable, and efficient operation.
What's the Applications of the 6201 2RZ Bearing?
The 6201 2RZ bearing is widely used in electric tools, home appliances, office equipment, industrial machinery, agricultural equipment, automotive systems, consumer electronics, and medical devices. Its double rubber seals ensure effective protection against contaminants and reliable lubricant retention, making it suitable for applications requiring smooth, quiet, and durable operation under various conditions.
If you need more specific information or have further questions about the 6201 2RZ bearing, feel free to ask!
