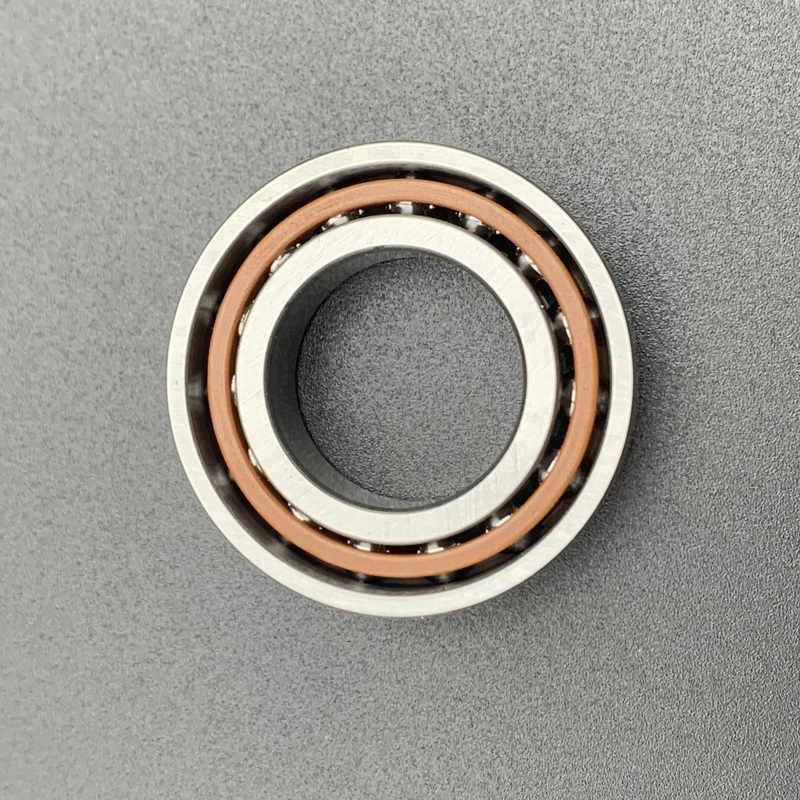

7000 ACD/P4ADBD Double Row Angular Contact Ball Bearings Super Precision

Name: 7000 ACD/P4ADBD Double Row Angular Contact Ball Bearings Super Precision
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7000 ACD/P4ADBD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7000 ACD/P4ADBD

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Double Row Angular Contact Ball Bearings, Double Row Angular Contact Bearing, Angular Contact Double Row Ball Bearing


Part Number:	Double Row Angular Contact Ball Bearings	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	Double Row Angular Contact Ball Bearings
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

7000 ACD/P4ADBD Double Row Angular Contact Ball Bearings Super Precision

7000 ACD/P4ADBD Super Precision High Capacity Two Rows Angular Contact Ball Bearing

7000 ACD/P4ADBD 10*26*16 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing High Speed

The 7000 ACD/P4ADBD bearing,bore diameter is 10 mm, outside diameter is 26 mm,width is 16 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	7000 ACD/P4ADBD
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	10 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	26 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	16 mm (2*8mm)
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome
	Cage Material	Phenolic
	Number of Rows	2 (2*Single Row)
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.038 kg
	Matched Arrangement	DB Back-to-back <> 2 bearings
	Universal Matching Bearing	No
	Preload	H/Heavy /Class D
Load and Speed	Dynamic Radial Load	6500 N
	Static Radial Load	3200 N
	Reference Speed For Grease (r/min)	57,000 rpm
	Limiting Speed For Oil(r/min)	90,000 rpm

7000 ACD/P4ADBD Double Row Angular Contact Ball Bearings Super Precision 0

What's the Performance Features of 7000 ACD/P4ADBD Bearing?

The 7000 ACD/P4ADBD bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the 7000 ACD/P4ADBD Bearing?

The 7000 ACD/P4ADBD bearing, a super-precision angular contact ball bearing, is extensively applied in industrial automation, medical equipment, aerospace, and the automotive industry due to its precision, reliability, and longevity. It ensures stable and efficient operation in machinery transmission systems, supports critical components in medical devices like electrocardiogram and ultrasound machines, enhances performance in aircraft engines and other aerospace parts, and improves vehicle safety and performance in automotive applications.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
