Highlight:
Part Number: |
S7007 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7007CTRV1VP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |

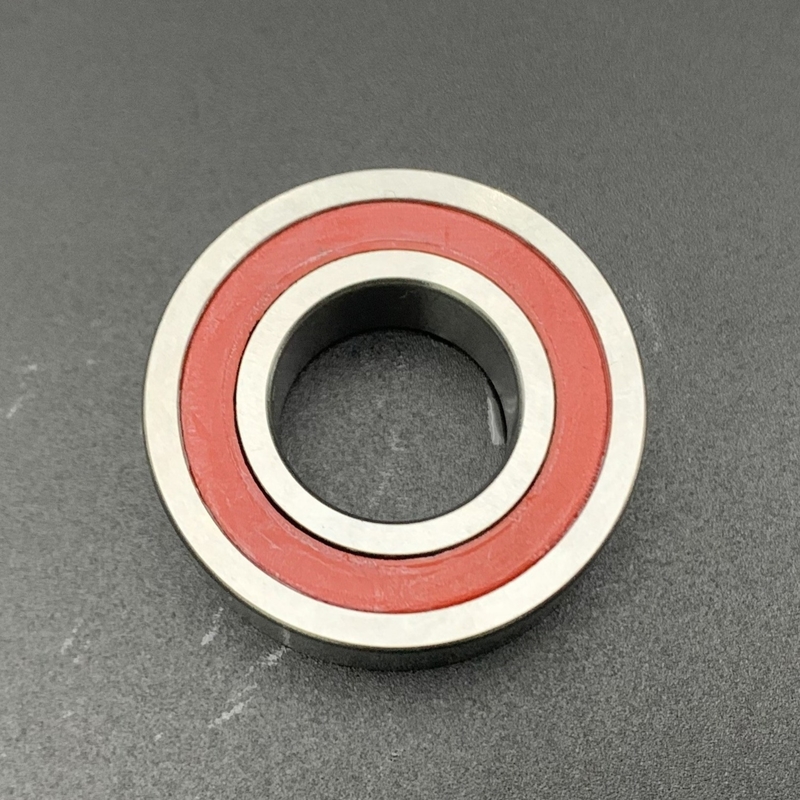

S7007 CB/P4A Super Precision Single Row Angular Contact Ball Bearing
S7007 CB/P4A 35*62*14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed B design, single row angular contact ball bearing with seals
The S7007 CB/P4A bearing,bore diameter is 35 mm, outside diameter is 62 mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
S7007 CB/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
35 mm |
| Inner Bore Diameter Tolerance |
-0.006mm to 0 |
| Outer Bore Diameter (D) |
62 mm |
| Outer Bore Diameter Tolerance |
-0.007mm to 0 |
| Width (B) |
14 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Seal on both sides |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.17 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
6890 N |
| Static Radial Load |
4800 N |
| Reference Speed For Grease (r/min) |
32,000 rpm |
| Limiting Speed For Oil(r/min) |
48,000 rpm |
What's the Performance Features of S7007 CB/P4A Bearing?
The S7007 CB/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7007 CB/P4A Bearing?
The S7007 CB/P4A high-precision angular contact ball bearing is designed for applications requiring high speed, rigidity, and precision. It excels in machine tool spindles and precision machining equipment with its P4A precision grade and sealed design, supports precise transmission in industrial robot joints and automation devices due to its compact size and low friction, and meets the demands of high-speed motors and aerospace equipment thanks to its sealed structure and ability to operate at speeds up to 28,000 rpm. Additionally, it is suitable for sensitive medical devices and instruments, as well as harsh conditions in wind power and construction machinery, by offering low vibration, low noise, and extended maintenance intervals. This makes the S7007 CB/P4A bearing a versatile and critical component across a wide range of industries.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
