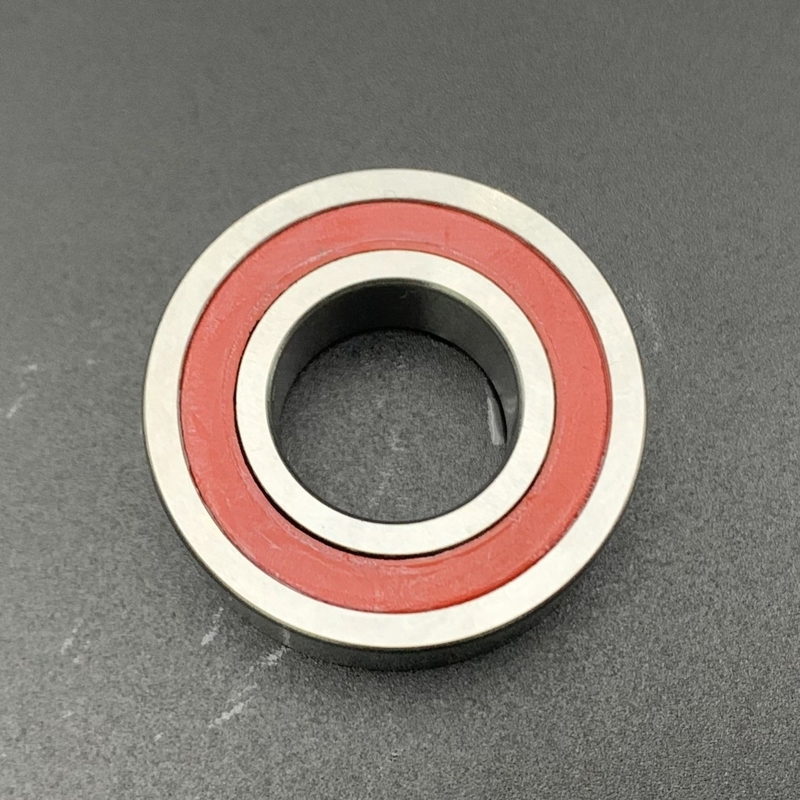

S7207 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7207 2RZ

Name: S7207 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7207 2RZ
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S7207 CD/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S7207 CD/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S7207 CD/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK S7207CTRV1VP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S7207 CD/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK S7207CTRV1VP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

S7207 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7207 2RZ

S7207 CD/HCP4A 35*72*17 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Bearings Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing with seals

The S7207 CD/HCP4A bearing,with a bore diameter of 35 mm,outside diameter of 72 mm,and width of 17 mm,features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.

Part Number	S7207 CD/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	35 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	72 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	17 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.29 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	31900 N
	Static Radial Load	21600 N
	Reference Speed For Grease (r/min)	26,000 rpm
	Limiting Speed For Oil(r/min)	38,000 rpm

S7207 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7207 2RZ 0

S7207 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7207 2RZ 1

What's the Performance Features of 7207 CD/HCP4A Bearing?

The 7207 CD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.

What's the Applications of the 7207 CD/HCP4A Bearing?

The 7207 CD/HCP4A bearing,precision angular contact ball bearing,featuring high speed, high rigidity, and hybrid ceramic balls, is essential in various high-performance industrial applications. It supports ultra-high-speed operations and provides high rigidity in machine tool spindles and precision machining equipment, ensures accuracy in semiconductor manufacturing and printing machinery, withstands harsh environments in chemical processing and heavy-duty conveyor systems, enhances performance in power and automation equipment like motors and robots, and offers wear resistance in special material processing such as glass and magnetic material production. Its advanced design makes it indispensable for ensuring optimal performance, durability, and reliability across a broad range of demanding industries.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
