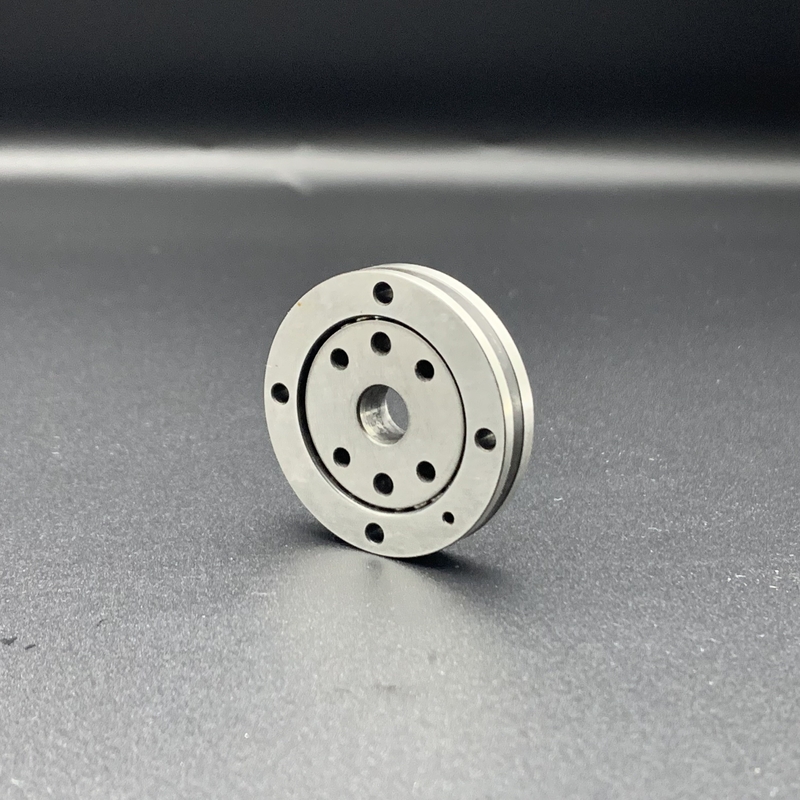

CRBTF105A 10X43X5mm Thin Wall Crossed Roller Bearing Compact Hand Robot Joint Bearing

CRBTF105A 10X43X5mm Thin Wall Crossed Roller Bearing Compact Hand Robot Joint Bearing

The CRBTF105A bearing is designed for high-precision rotational motion, featuring crossed cylindrical rollers arranged at right angles to provide exceptional rigidity and load-bearing capacity. Key features include:

• Outer Diameter:43 mm
• Bore Diameter: 10 mm
• Width:5 mm
• Structure: Integrated compact design supporting radial, axial, and moment loads in any direction.
• Installation: Simplified by eliminating the need for a mounting flange.

The CRBTF105A bearing excels in applications requiring high performance and reliability, offering superior stiffness and load capacity while simplifying installation.

What's the Performance Features of CRBTF105A Crossed Roller Bearing?

CRBTF105A is a thin-walled cross roller bearing, primarily used in industrial scenarios that demand high precision and lightweight design.

• Lightweight Design: Compared to traditional models, its weight is reduced by approximately 62%, with a cross-section height of only 5 mm, making it suitable for compact space applications.
• High Rigidity: The cross-roller structure can withstand axial, radial, and overturning moment loads, offering 3-4 times higher rigidity than traditional bearings.
• High Precision: The precision grade can reach P2/P4/P5 levels, making it ideal for precision equipment such as robotic joints, medical instruments, and more.

What's the Applications of the CRBTF105A​ Crossed Roller Bearing?

The CRBTF105A cross roller bearing, with its high precision, high load-carrying capacity, and compact design, is widely used in the following fields:

1. Industrial Robots:

Components requiring high-precision rotation, such as robotic arm joints and RV reducers.

2. Precision Turntables:

Applications requiring low friction and high stability, such as machining centers in machine tools and turntables for optical instruments.

3. Small-Sized Equipment:

Examples include PTZ (pan-tilt-zoom) mechanisms for surveillance cameras and micro transmission systems in automated equipment.

CRB Series (Integrated Inner/Outer Ring Type) Crossed Roller Bearing

I. Structural Characteristics

Split Outer Ring and Integral Inner Ring Design

• The outer ring is divided into two parts, while the inner ring is a single-piece structure, facilitating installation and clearance adjustment.
• Features an equal cross-section thin-walled design, with both inner and outer ring thickness minimized to suit compact space applications.

Rolling Element Arrangement

• Cylindrical rollers are arranged in a 90° cross pattern, with spacers maintaining their spacing to prevent friction and locking phenomena.

II. Performance Advantages

High Load-Carrying Capacity

• Capable of simultaneously withstanding radial, axial loads, and overturning moments, making it suitable for heavy-load applications (e.g., cranes, construction machinery).

High Rigidity and Precision

• Offers 3-4 times higher rigidity than traditional bearings, with rotational accuracy reaching P4 and P2 levels, ideal for precision equipment (e.g., CNC machine tools, medical instruments).

Lightweight and Compactness

• Extremely thin walls and reduced weight make it suitable for weight-sensitive applications such as robotic joints and manipulators.

High-Speed Performance

• Low-friction design supports high-speed rotation (e.g., DD motors, high-speed indexing tables).

III. Typical Application Scenarios

If you need more detailed information , feel free to ask!
