S7010 CE/HCP4A Super Precision P4A Grade Angular Contact Ball Bearing with High Speed 30,000 rpm and Hybrid Ceramic Balls

Name: S7010 CE/HCP4A Super Precision P4A Grade Angular Contact Ball Bearing with High Speed 30,000 rpm and Hybrid Ceramic Balls
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S7010 CE/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S7010 CE/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                S7010 angular contact ball bearing, 7010 2RZ angular contact ball bearing


Part Number:	7010 CE/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK 7010CSN24TRV1VP4
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7010 CE/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK 7010CSN24TRV1VP4
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

S7010 CE/HCP4A Super Precision P4A Grade Angular Contact Ball Bearing with High Speed 30,000 rpm and Hybrid Ceramic Balls

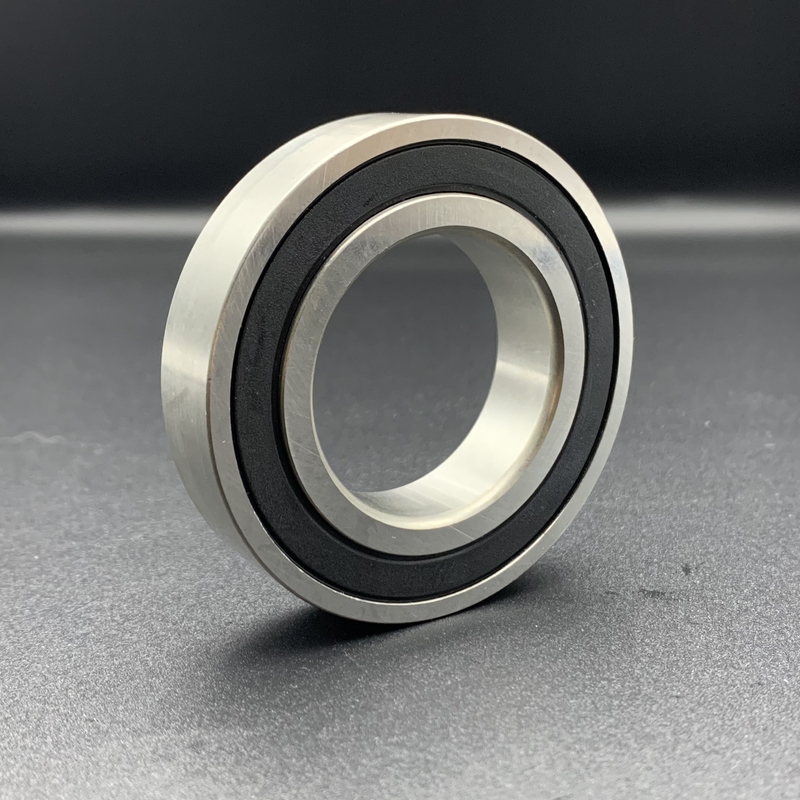

S7010 CE/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7010 2RZ

Product Overview

S7010 CE/HCP4A 50×80×16 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls for High Speed Applications

Super-precision, high-speed E design, single row angular contact ball bearing with seals. The S7010 CE/HCP4A bearing, with bore diameter of 50 mm, outside diameter of 80 mm, and width of 16 mm, features precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls. Delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications

Part Number	S7010 CE/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d): 50 mm Inner Bore Diameter Tolerance: -0.006mm to 0 Outer Bore Diameter (D): 80 mm Outer Bore Diameter Tolerance: -0.007mm to 0 Width (B): 16 mm Width Tolerance: -0.2mm to 0
Specifications	Contact Angle: 15° (25°, 40° Available) Material: Hybrid (Chrome Steel Rings, Ceramic Balls) Cage Material: Phenolic Number of Rows: 1 Single Row Seal Type: Seal on both sides Temperature Range: -30°C to 150°C Lubrication: Grease Tolerance Class: P4A better than P4 Weight: 0.23 kg Matched Arrangement: No Universal Matching Bearing: No Preload: Not applicable
Load and Speed	Dynamic Radial Load: 15,600 N Static Radial Load: 10,600 N Reference Speed For Grease: 30,000 rpm Limiting Speed For Oil: 46,000 rpm

Product Images

Performance Features

The S7010 CE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision and angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

Applications

The S7010 CE/HCP4A bearing is widely used across various industries due to its high precision, stability, and durability:

Industrial Equipment
• Welding Machines: AC and manual welders
• Drying Equipment: Mesh belt furnaces, flash dryers, rotary dryers
• Cleaning Machines: Stable operation under vibration and load
• Binding Machines: High-quality binding applications

Machine Tools
• Machining centers, lathes, grinders, and drilling machines
• Spindles requiring high speed and precision

Plastics and Rubber Industry
• Mixing, extrusion, and molding machinery
• Reliable and efficient operation

Laboratory Equipment
• Lab mixers for precise and stable stirring
• Ensures accurate test results

Commercial Use
• Pressing tables for ironing applications
• Smooth and stable performance

Certifications & Services

Certifications: RoHS & REACH, IATF16949:2016

Features
• High Speed and Stiffness
• High Running Accuracy
• High Load Carrying Capacity

Services
• OEM & ODM Customized Services
• Online Support
• Professional Service
• Samples Available (Contact Us)
• Standard & Custom Sizes

Manufacturing
• Factory Manufacturer
• Quality Assurance

If you need more detailed information, feel free to ask!
