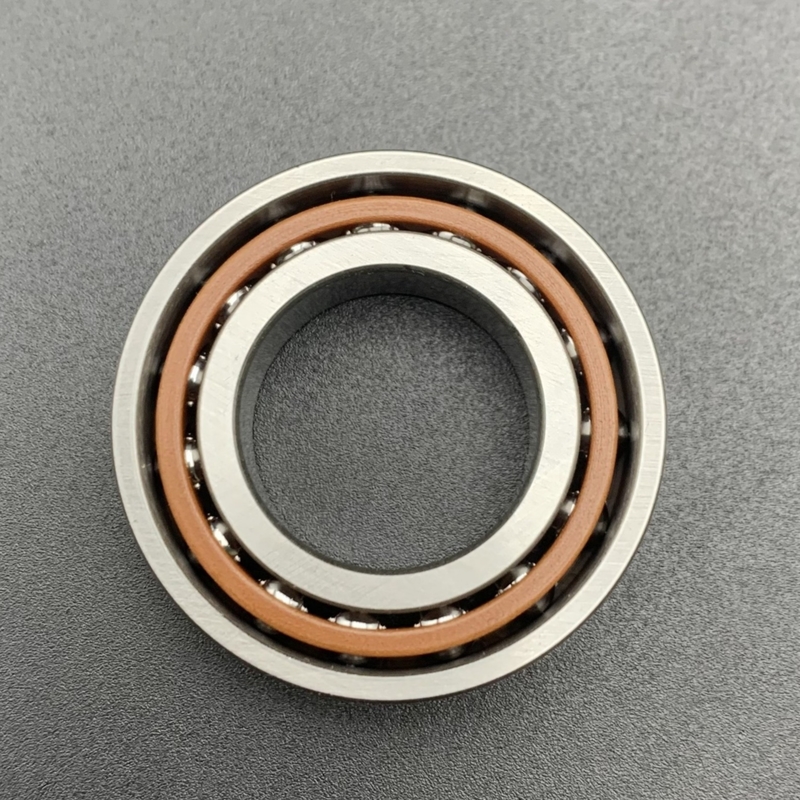

71910 ACE/HCP4A Super Precision Single Row Angular Contact Ball Bearing with 50 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls

Name: 71910 ACE/HCP4A Super Precision Single Row Angular Contact Ball Bearing with 50 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71910 ACE/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71910 ACE/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                71910 angular contact ball bearing, 7910 angular contact ball bearing


Part Number:	71910 ACE/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7910A5SN24TRP4
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71910 ACE/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7910A5SN24TRP4
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

71910 ACE/HCP4A Super Precision Single Row Angular Contact Ball Bearing with 50 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls

71910 ACE/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7910

71910 ACE/HCP4A 50×72×12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed

Super-precision, high-speed E design, single row angular contact ball bearing. The 71910 ACE/HCP4A bearing features a bore diameter of 50 mm, outside diameter of 72 mm, and width of 12 mm. With precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications

Part Number	71910 ACE/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d): 50 mm Inner Bore Diameter Tolerance: -0.006mm to 0 Outer Bore Diameter (D): 72 mm Outer Bore Diameter Tolerance: -0.007mm to 0 Width (B): 12 mm Width Tolerance: -0.2mm to 0
Specifications	Contact Angle: 25° (15°, 40° Available) Material: Hybrid (Chrome Steel Rings, Ceramic Balls) Cage Material: Phenolic Number of Rows: 1 Single Row Seal Type: Open Temperature Range: -30°C to 150°C Lubrication: Oil, Grease Tolerance Class: P4A better than P4 (ABEC-7) Weight: 0.11 kg Matched Arrangement: No Universal Matching Bearing: No Preload: Not applicable
Load and Speed	Dynamic Radial Load: 12100 N Static Radial Load: 8150 N Reference Speed For Grease: 28,000 rpm Limiting Speed For Oil: 43,000 rpm

Performance Features

The 71910 ACE/HCP4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring:

Very tight tolerances suitable for precise machinery
Ability to handle both radial and axial loads simultaneously
High-speed operation with stability
Low torque and friction for energy efficiency
Enhanced rigidity for accuracy under heavy loads
Durability with extended service life
Effective performance across a wide temperature range

Applications

The 71910 ACE/HCP4A bearing is a high-precision angular contact ball bearing widely used in various industries:

Industrial Manufacturing

Metalworking Equipment: Used in machines like steel bar cutters, band saws, and gear shapers
Plastic Processing Machinery: Suitable for plastic calendering machines and pipe extrusion equipment
Weaving and Riveting Machines: Provides stability and durability for weaving and riveting equipment

Energy and Chemical Industry

High-Pressure Reactors: Operates reliably under high pressure and temperature conditions
Process Pumps: Supports the stable transfer of liquids in chemical processes

Food and Refrigeration

Frozen Food Processing Equipment: Performs well in low-temperature environments
Water-Cooled Chillers: Offers excellent heat dissipation and stability

Welding and Machining

Stud Welding Machines: Withstands impact and vibration during welding
Rock Drills: Resists heavy vibrations and shocks in harsh drilling environments

Other Fields

Spray Cooling Towers: Resists corrosion and provides stability
Beverage Production Equipment: Ensures stable operation of beverage manufacturing machines

Certifications & Services

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support, Professional Service
Size	Standard, For custom sizes, please contact us
Factory Manufacturer	Yes

If you need more detailed information, feel free to ask!
