7002 AC P5 P4 Precision Spindle Bearings Angular Contact Single Row

Name: 7002 AC P5 P4 Precision Spindle Bearings Angular Contact Single Row
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7002 AC
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OEM

Certification: IATF16949:2016

Model Number: 7002 AC

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Precision Spindle Bearings Angular Contact, P4 Precision Spindle Bearings, Spindle Bearings Angular Contact Single Row


Inside Diameter:	15mm	Outside Diameter:	32mm
Width:	9mm	Precision:	P5,P4
Contact Angle:	25°	Material:	Chrome Stell GCr15
Cage:	Bakelite	Bearing Type:	Angular Contact Thrust Ball Bearing

Inside Diameter:	15mm
Outside Diameter:	32mm
Width:	9mm
Precision:	P5,P4
Contact Angle:	25°
Material:	Chrome Stell GCr15
Cage:	Bakelite
Bearing Type:	Angular Contact Thrust Ball Bearing

7002 AC P5 P4 Precision Spindle Bearings Angular Contact Single Row

7002 AC Super precision Angular Contact Ball Bearing Spindle Applications CNC Machine tools Long life Low Noise

Angular contact ball bearings are essential for applications requiring high axial load capacity and precision. Their ability to handle both radial and axial loads, combined with high-speed operation, makes them suitable for a wide range of industrial applications, including CNC machine tools and precision machinery. Proper installation, especially in pairs, ensures optimal performance and extended service life.

Angular contact ball bearings are designed primarily to handle large one-way axial loads. The larger the contact angle, the greater the load-bearing capacity. The cage material can be steel plate, brass, or engineering plastic, and the forming method is either stamping or turning, depending on the bearing type and application conditions.

Key Features

Load Capacity:

Axial and Radial Loads: Angular contact ball bearings can withstand both radial and axial loads.

Contact Angle: The larger the contact angle, the higher the axial load-carrying capacity. High precision and high-speed bearings typically use a 15-degree contact angle.

Axial Force Impact: Under axial force, the contact angle increases, enhancing load capacity.

Speed:

High-Speed Operation: These bearings can operate at higher speeds due to their design and material properties.

Single Row Bearings:

One-Way Axial Loads: Single row angular contact ball bearings can only handle axial loads in one direction.

Additional Axial Forces: When subjected to radial loads, they generate additional axial forces and can only limit axial displacement in one direction.

Paired Installation:

Opposite Outer Rings: To avoid additional axial forces and limit axial play in both directions, single row angular contact ball bearings are often installed in pairs. The outer rings of the paired bearings are positioned oppositely, with the wide end faces the wide end and the narrow end faces the narrow end.

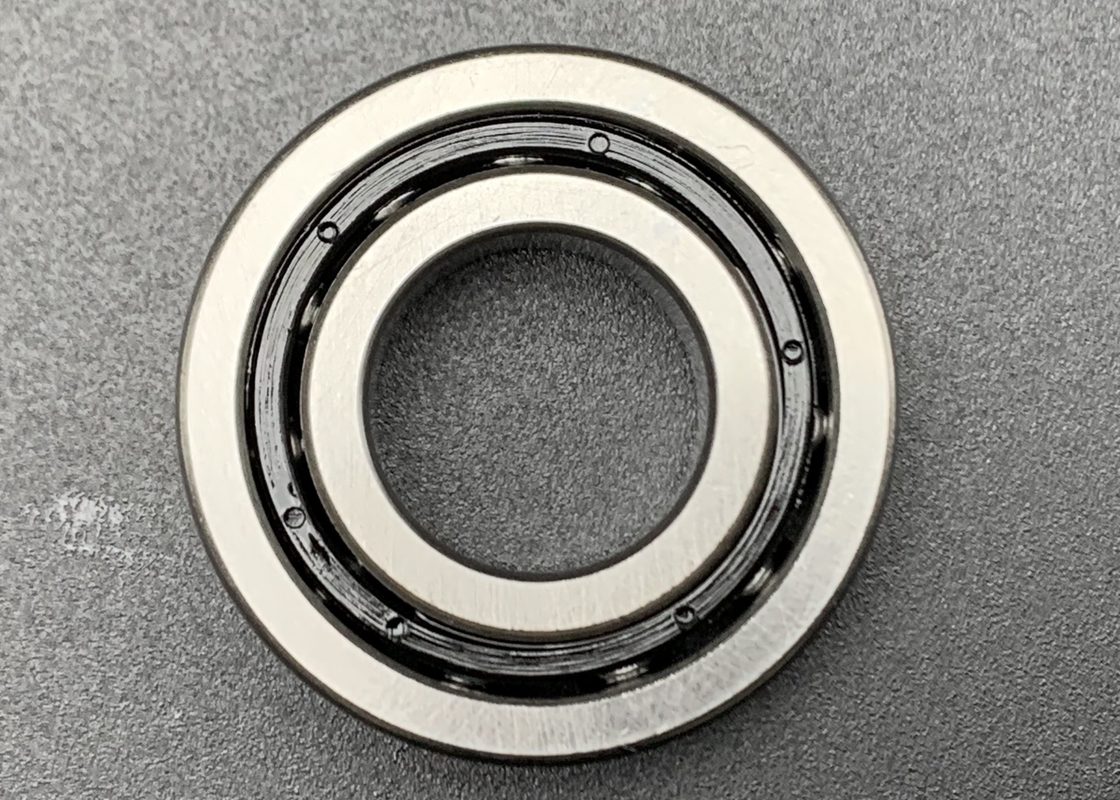

7002 AC P5 P4 Precision Spindle Bearings Angular Contact Single Row 0
