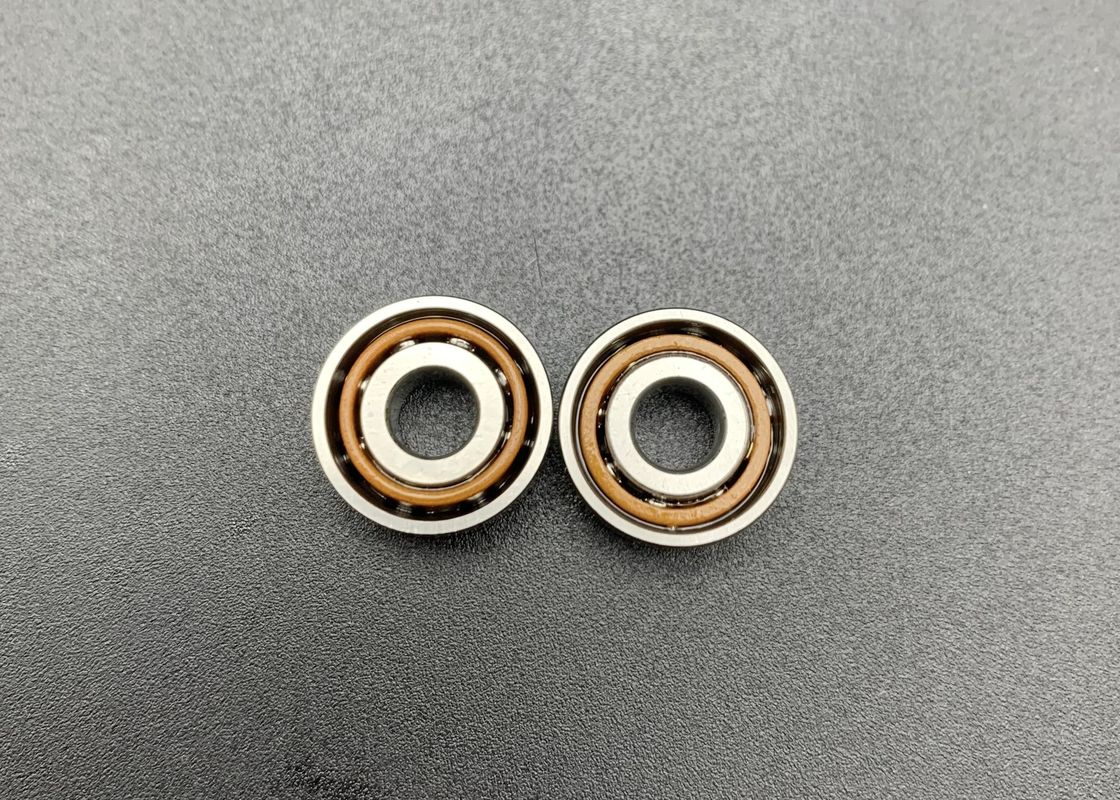

705AC High Precision Miniature Angular Contact Ball Bearing Single Row 5x14x5mm

Name: 705AC High Precision Miniature Angular Contact Ball Bearing Single Row 5x14x5mm
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 705AC High Precision Miniature Angular Contact Ball Bearings
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OEM

Certification: IATF16949:2016

Model Number: 705AC High Precision Miniature Angular Contact Ball Bearings

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Miniature Angular Contact Bearings, High Precision Angular Contact Bearings, Angular Contact Bearings Single Row


Part Number:	Miniature Angular Contact Bearings	Tolerance:	P4 / ABEC-7,P5,P6 Precision
Contact Angle:	25°/AC，15 ° /C And 40°/B Available	Lubrication:	Oil Or Grease As Per Agreement
Preload:	Light	Interchangeable With:	SKF, NTN, NSK Etc
Sealed Type:	Open ,Sealed ZZ Or 2RS As Agreement	Packing:	Plastic Bag,Box,Carton,Pallet

Part Number:	Miniature Angular Contact Bearings
Tolerance:	P4 / ABEC-7,P5,P6 Precision
Contact Angle:	25°/AC，15 ° /C And 40°/B Available
Lubrication:	Oil Or Grease As Per Agreement
Preload:	Light
Interchangeable With:	SKF, NTN, NSK Etc
Sealed Type:	Open ,Sealed ZZ Or 2RS As Agreement
Packing:	Plastic Bag,Box,Carton,Pallet

705AC High Precision Miniature Angular Contact Ball Bearing Single Row 5x14x5mm

705AC High Precision Miniature Angular Contact Bearings Single Row 5x14x5mm

Product Overview

The 705AC High Precision Miniature Angular Contact Ball Bearings are engineered for exceptional performance in demanding applications. These super-precise bearings are manufactured to exacting standards using high-quality materials, making them ideal for high-speed spindles, precision tools, and applications where accuracy and speed are critical.

Technical Specifications

Bearing Number	Inner Diameter (d)	Outer Diameter (D)	Width (B)	Chamfer	Dynamic Load (Cr)	Static Load (Cor)	Limiting Speed (Grease)	Limiting Speed (Oil)	Weight
705 AC	5 mm	14 mm	5 mm	0.2 / 0.1 mm	1400 N	500 N	38,000 rpm	45,000 rpm	0.016 Kg

Construction Details

Ring Material: Superior-Grade GCr15
Roller Material: High Precision Steel Ball G5
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: Options available in 25°/AC, 15°/C, and 40°/B
Lubrication: Oil Lubrication or Grease As Agreement
Temperature Range: -30°C to +110°C
Precision Rating: P4 (ABEC7), P5, P2 available
Certifications: RoHS, IATF16949:2016

Primary Applications

Machine Tool Spindles: CNC machines, grinders, and precision machining equipment
High-Speed Machinery: Drilling and milling machines requiring rapid rotations
Aerospace Components: Gyroscopes, actuators, and jet engines
Medical Equipment: Dental drills, CT scanners, and MRI machines
Semiconductor Manufacturing: Wafer processing equipment
Robotics and Automation: Robotic joints and automation systems
Precision Instruments: Measuring instruments and optical devices
Other High-End Manufacturing: Printing equipment and textile machinery

Performance Characteristics

High-Speed Capabilities

Designed for fast and efficient operation without significant heat buildup or excessive wear. Effectively manages thermal energy and minimizes friction for continuous high-speed tasks.

Exceptional Precision

Manufactured to ultra-tight tolerances (P4 or P4A class) ensuring highly accurate operation with minimal unwanted movement for smooth and reliable performance.

Enhanced Rigidity and Stability

Superior axial and radial rigidity maintains stability under varying loads, crucial for precision in demanding applications like machine tool spindles.

Advanced Material Construction

Top-grade materials resist wear and perform reliably at high speeds and temperatures, enhancing bearing lifespan and long-term reliability.

Low Friction and Heat Dissipation

Minimized internal friction and efficient heat dissipation extend bearing life and reduce maintenance downtime.

Versatile Load Capacity

Effectively manages both axial (thrust) and radial loads, making it versatile and dependable for various applications.

Durability and Longevity

Advanced manufacturing techniques and premium materials provide extended operational life, making it cost-effective for challenging industrial environments.

Additional Services

Matched Arrangement: Compatible with matched sets
Preload: Available as Customer's Requirement
Universal Matching: Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Custom Services: OEM & ODM Customized Services
Samples: Available upon request
Support: Online Support, Professional Service
Custom Sizes: Available - please contact for details
Factory Manufacturer: Yes - welcome to visit our company
