6203 ZZ Bearing Deep Groove Ball Bearings Single Row 174012mm Bearing

Name: 6203 ZZ Bearing Deep Groove Ball Bearings Single Row 17*40*12mm Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 6203 ZZ / 6203 2Z
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 6203 ZZ / 6203 2Z

Payment & Shipping Terms

Minimum Order Quantity: 100000

Price: Please contact us

Packaging Details: plastic tub,carton,pallet

Delivery Time: 30 days

Supply Ability: 1 million pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                6203 ZZ Bearing Deep Groove, 17*40*12mm Bearing, 17 X 40 X 12 Bearing


Part Number:	6203 ZZ CM	Type:	Ball Bearing
Structure:	Deep Groove	Number Of Row:	Single Row
Vibration:	Z3, Z4	Noise:	V3, V4
Precision:	P6, P0	Clearance:	C0,C2,C3,C4,EM

Part Number:	6203 ZZ CM
Type:	Ball Bearing
Structure:	Deep Groove
Number Of Row:	Single Row
Vibration:	Z3, Z4
Noise:	V3, V4
Precision:	P6, P0
Clearance:	C0,C2,C3,C4,EM

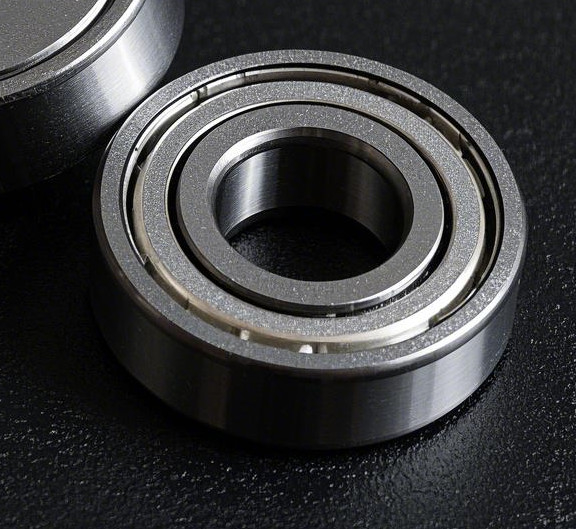

6203 ZZ Bearing Deep Groove Ball Bearings Single Row 17*40*12mm Bearing

6203 ZZ CM Deep Groove Ball Bearings Single Row 17*40*12mm Air Conditioner Quiet bearings

The 6203 ZZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:

Bearing Number	Dimensions(mm)				Basic Load Rating(N)		Limiting Speed(rpm)		Weight(Kg)
	Inner Diameter	Outer Diameter	Width	Chamfer	Dynamic	Static	Grease	Oil	Weight(Kg)
	d	D	B	r(min)	Cr	Cor	Non-contact	Non-contact	Reference
6203 ZZ	17	40	12	0.6	9550	4800	12000	/	0.065

Ring Material	Chrome Steel
Roller Material	Chrome Steel
Cage	Steel
Lubrication	Grease
Measurement Unit	Metric
Seal Type	ZZ(2RS,2RZ, open types are available)
Temperature Range	-30°C ~ +150°C
CERTIFICATE	RoHS, IATF16949:2016
Feature	Long Life,Low Noise,High Speed
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
Size	Standard,For custom sizes ,please contact us
Bearing Type	Ball
For Load Direction	Radial
Construction	Single Row
Tolerance Class	P6,P0
Radial Clearance	CM

Requirements for Bearings in Air Conditioners.

Air conditioners typically use two sets of bearings. The specific requirements for these bearings are as follows:

Operational Speed: The bearings should be capable of operating at speeds ranging from approximately 2,800 to 3,000 RPM.
Quiet Operation: There is a high requirement for low noise performance. The bearings must be exceptionally quiet, similar to those used in sealed motors.
Long Service Life: The bearings should support long-term operation with minimal maintenance or replacement, ensuring reliable and continuous performance.

6203 ZZ Bearing Deep Groove Ball Bearings Single Row 17*40*12mm Bearing 0

6203 ZZ Bearing Deep Groove Ball Bearings Single Row 17*40*12mm Bearing 1

6203 ZZ Bearing Deep Groove Ball Bearings Single Row 17*40*12mm Bearing 2

What's the Performance Features of 6203 ZZ Bearings in Air Conditioner?

The 6203 ZZ bearing, equipped with double metal shields, is ideally suited for air conditioners due to its ability to operate efficiently at speeds up to 3,400 RPM, ensuring quiet and reliable performance within the typical 2,800 to 3,000 RPM range. Its design emphasizes low noise levels, crucial for maintaining user comfort, while offering long service life with minimal maintenance. The metal shields protect against dust and moisture, enhancing durability and reliability in continuous operation, making it a robust choice for air conditioning applications.

What's the Applications of the 6203ZZ Bearing?

The 6203 ZZ bearing,is widely utilized across diverse industries. It supports a broad range of applications including industrial machinery like gearboxes and elevators, mechanical equipment such as plastic pelletizing machines and impeller pumps, transportation vehicles from cars to agricultural machinery, electronic devices requiring precision like computer hard drives and printers, home appliances such as washing machines and refrigerators, medical devices including dental drills and surgical instruments, aerospace components, construction machinery, food processing equipment, renewable energy systems, office equipment, sports and fitness machines, and automotive manufacturing tools. Its simplicity, reliability, and versatility make it an indispensable component in ensuring smooth and efficient operation across these sectors.

If you have more specific questions about the applications of the 6203ZZ bearing or need additional information, feel free to ask!
