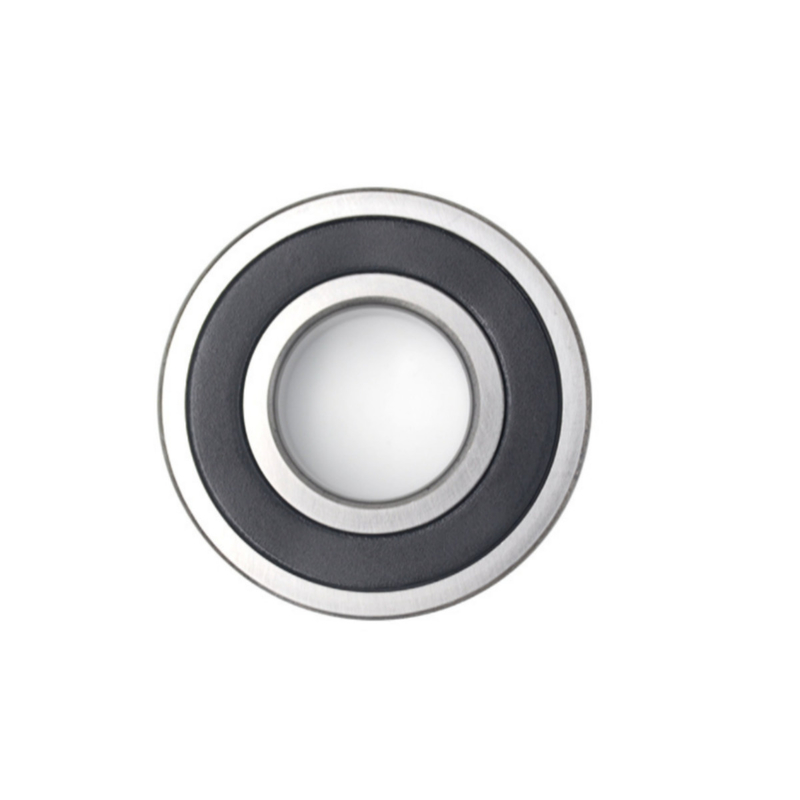

Versatility Deep Groove Ball Bearing 6904 2RS C0 20379mm Bearing

Name: Versatility Deep Groove Ball Bearing 6904 2RS C0 20*37*9mm Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 6904 2RS
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 6904 2RS

Payment & Shipping Terms

Minimum Order Quantity: 50000

Price: Please contact us

Packaging Details: plastic tub,carton,pallet

Supply Ability: 1 million pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Versatility Deep Groove Ball Bearing, Deep Groove Ball Bearing 6904 2RS, 6904 2RS Bearing


Part Number:	6904 2RS C0 Deep Groove Ball Bearings	Type:	Ball Bearing
Structure:	Deep Groove	Number Of Row:	Single Row
Vibration:	Z2,Z3,	Noise:	V2,V3,
Precision:	P6,	Clearance:	C0,C2,C3,C4,EM

Part Number:	6904 2RS C0 Deep Groove Ball Bearings
Type:	Ball Bearing
Structure:	Deep Groove
Number Of Row:	Single Row
Vibration:	Z2,Z3,
Noise:	V2,V3,
Precision:	P6,
Clearance:	C0,C2,C3,C4,EM

Versatility Deep Groove Ball Bearing 6904 2RS C0 20*37*9mm Bearing

6904 2RS C0 Deep Groove Ball Bearings Single Row 20*37*9mm Worm Gear Reducers

The 6904 2RS bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:

Bearing Number	Dimensions(mm)				Basic Load Rating(N)		Limiting Speed(rpm)		Weight(Kg)
	Inner Diameter	Outer Diameter	Width	Chamfer	Dynamic	Static	Grease	Oil	Weight(Kg)
	d	D	B	r(min)	Cr	Cor	Non-contact	Non-contact	Reference
6904 2RS	20	37	9	0.3	6400	3700	12000	/	0.038

Ring Material	Chrome Steel
Roller Material	Chrome Steel
Cage	Steel
Lubrication	Grease
Measurement Unit	Metric
Seal Type	ZZ(2RS,2RZ, open types are available)
Temperature Range	-30°C ~ +150°C
CERTIFICATE	RoHS, IATF16949:2016
Feature	Long Life,Low Noise,High Speed
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
Size	Standard,For custom sizes ,please contact us
Bearing Type	Ball
For Load Direction	Radial
Construction	Single Row
Tolerance Class	P6
Radial Clearance	C0

Requirements for Bearings in Worm Gear Reducers.

Worm gear reducers typically require 4 sets of bearings, with the following specifications:

Low Speed: The bearings must be capable of operating at low speeds.
Load Capacity: They should be able to withstand specified loads.
Long Service Life: The bearings need to ensure long-lasting performance.

Versatility Deep Groove Ball Bearing 6904 2RS C0 20*37*9mm Bearing 0

Versatility Deep Groove Ball Bearing 6904 2RS C0 20*37*9mm Bearing 1

Versatility Deep Groove Ball Bearing 6904 2RS C0 20*37*9mm Bearing 2

What's the Performance Features of 6904 2RS Bearings in Worm Gear Reducers?

The 6904 2RS bearing provides reliable performance in worm gear reducers, designed to operate effectively at low speeds while supporting specified loads. Its double rubber seals ensure effective protection against contaminants and retain lubricant, contributing to long-lasting performance and minimal maintenance. Built for durability, it offers a long service life, making it well-suited for the demanding conditions of worm gear reducer applications. The robust construction and load-bearing capability of the 6904 2RS bearing ensure consistent and dependable operation in these mechanical systems.

What's the Applications of the 6904 2RS Bearing?

The 6904 2RS bearing is suitable for applications such as aerospace components, medical equipment like scanners and MRI machines, robotics and automation systems, and consumer electronics including cameras and laptops, where precision, compact design, and reliable performance in limited spaces are crucial.

If you need further details or have other questions, feel free to ask!
