Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 706 ACD/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 100000pcs per month
Part Number: |
706 ACD/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Sealing:: |
Without |
Design: |
High-capacity D |
Part Number: |
706 ACD/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Sealing:: |
Without |
Design: |
High-capacity D |

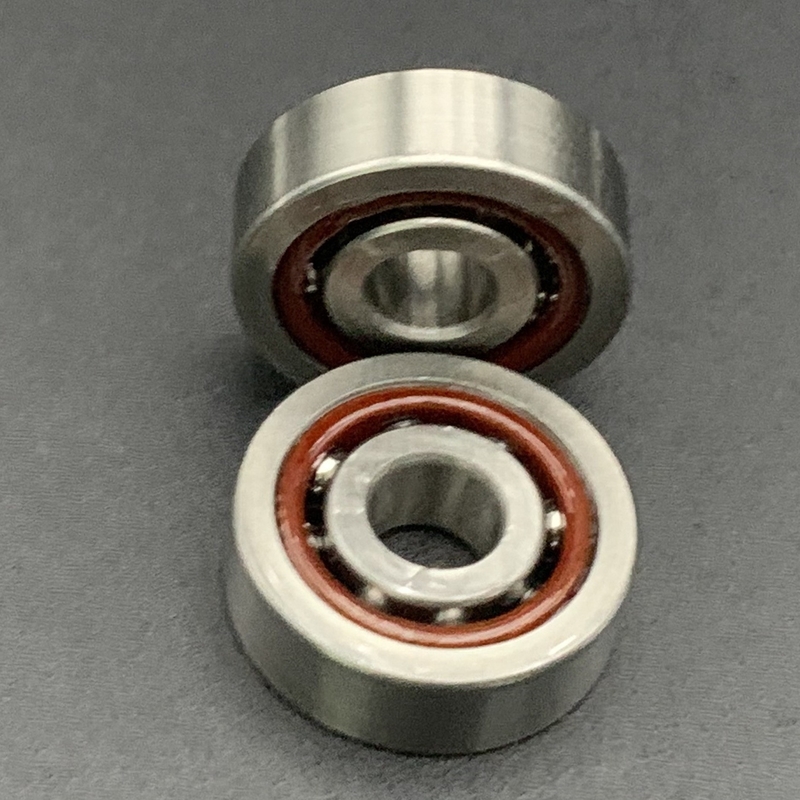

706 ACD/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
The 706 ACD/HCP4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 706 ACD/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 6 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 17 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 6 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.005 kg | |
| Matched Arrangement | No | |
| Preload | Not Applicable | |
| Load and Speed | Dynamic Radial Load | 1952 N |
| Static Radial Load | 752 N | |
| Reference Speed (r/min) | 130,000 rpm | |
| Limit Speed (r/min) | 190,000 rpm | |
What's the Performance Features of 706 ACD/HCP4A Bearing?
The 706 ACD/HCP4A bearing, featuring P4 precision grade and hybrid ceramic balls, offers exceptional performance with high rotational accuracy, superior load capacity, and excellent speed capability. Designed for low noise and enhanced durability, it excels in demanding applications such as machine tool spindles, aerospace components, and precision manufacturing equipment, ensuring reliable and long-lasting operation in environments that require exacting standards.
What's the Applications of the 706 ACD/HCP4A Bearing?
The 706 ACD/HCP4A bearing, a precision angular contact ball bearing, excels in high-speed operations while supporting both radial and axial loads. Its exceptional precision and performance make it ideal for applications in machine tool spindles, material handling equipment, manufacturing (especially in electronics and instrumentation), electric motors and generators, aerospace components, scientific research devices, robotics, and high-end automotive parts, ensuring stable and accurate operation in industries demanding high reliability and performance.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
