Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 706 ACE/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 100000pcs per month
Part Number: |
706 ACE/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Part Number: |
706 ACE/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |

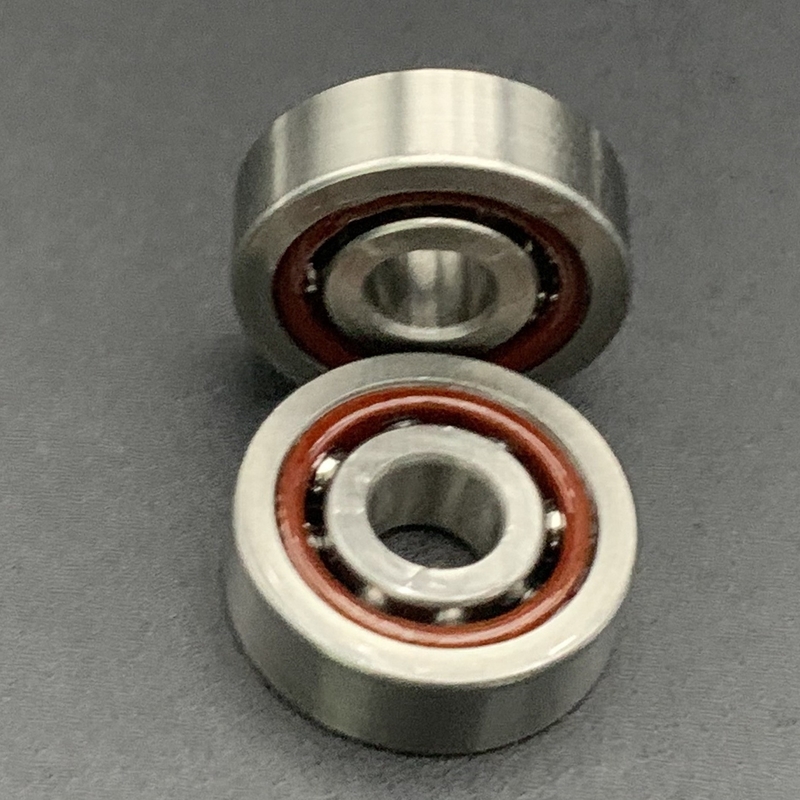

706 ACE/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
The 706 ACE/HCP4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 706 ACE/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 6 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 17 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 6 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A | |
| Weight | 0.005 kg | |
| Matched Arrangement | No (DB,DF,DT,DG) | |
| Preload | Not Applicable(EL,L,M,H,CP,CA) | |
| Load and Speed | Dynamic Radial Load | 1510 N |
| Static Radial Load | 490 N | |
| Reference Speed (r/min) | 150,000 rpm | |
| Limit Speed (r/min) | 230,000 rpm | |
What's the Performance Features of 706 ACE/HCP4A Bearing?
The 706 ACE/HCP4A bearing, featuring P4 precision grade and hybrid ceramic balls, delivers exceptional performance with high rotational accuracy, superior load capacity, and excellent speed capability. Designed for low-noise operation and enhanced durability, it excels in applications requiring exacting standards of precision and reliability, such as machine tool spindles, aerospace systems, and precision manufacturing equipment.
What's the Applications of the 706 ACE/HCP4A Bearing?
The 706 ACE/HCP4A angular contact ball bearing, widely used in machine tool spindles, high-speed rotating equipment such as power tools, generators, and turbine machinery, precision instruments like optical devices, measurement equipment, and medical devices, industrial robots, and aerospace systems, this bearing offers reliable support and superior performance in environments that demand exacting standards of precision and reliability.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
