706 CD/P4ADBB Super Precision Angular Contact Ball Bearing Machine Tool Spindles

Name: 706 CD/P4ADBB Super Precision Angular Contact Ball Bearing Machine Tool Spindles
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 706 CD/P4ADBB
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 706 CD/P4ADBB

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	706 CD/P4ADBB Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Service:	OEM & ODM Customized Services	Lubrication:	Grease,Oil
Replaceable With:	SKF	Coating:	Without

Part Number:	706 CD/P4ADBB Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Service:	OEM & ODM Customized Services
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without

706 CD/P4ADBB Super Precision Angular Contact Ball Bearing Machine Tool Spindles

706 CD/P4ADBB Super Precision High Capacity Two Single Rows Angular Contact Ball Bearing Machine Tool Spindles

The 706 CD/P4ADBB bearing, featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	706 CD/P4ADBB
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	6 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	17 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	12mm (6mm *2 )
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	Two Rows (2*Single Row)
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.012 kg
	Matched Arrangement	2 Bearings DB<>
	Preload	Light
	Installation Method	Press Fit
Load and Speed	Dynamic Radial Load	3250 N
	Static Radial Load	1530 N
	Reference Speed (r/min)	90,000 rpm
	Limit Speed (r/min)	140,000 rpm

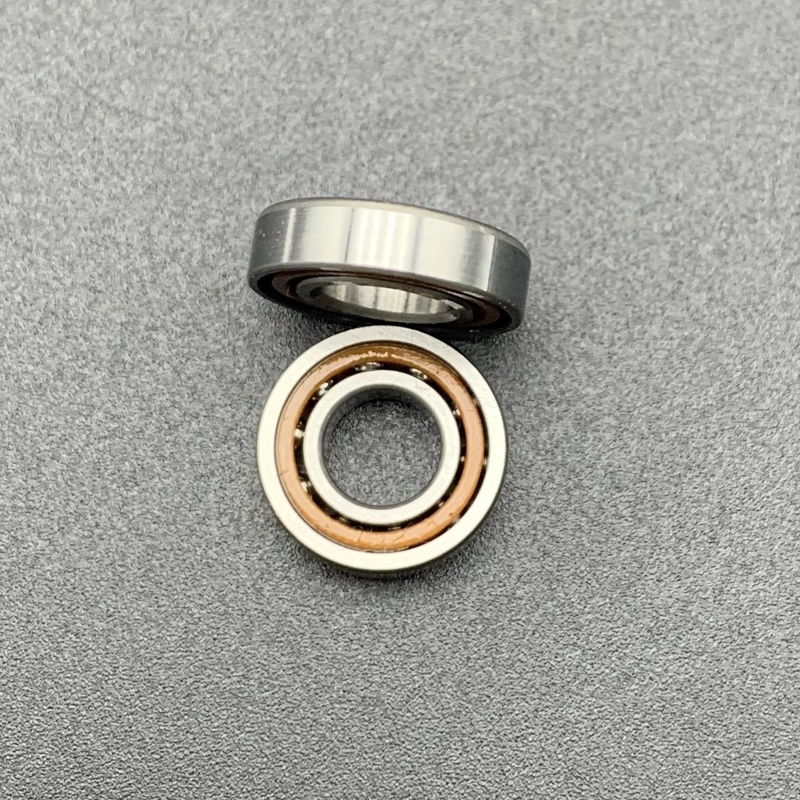

706 CD/P4ADBB Super Precision Angular Contact Ball Bearing Machine Tool Spindles 0

706 CD/P4ADBB Super Precision Angular Contact Ball Bearing Machine Tool Spindles 1

What's the Performance Features of 706 CD/P4ADBB Bearing?

The 706 CD/P4ADBB bearing, featuring a back-to-back (DB) configuration and P4 precision grade, delivers exceptional performance with high load capacity, excellent rotational accuracy, and robust durability. Optimized for high-speed operation and low-noise performance, it is preloaded to eliminate internal clearance and enhance stiffness. This makes it ideal for demanding applications such as machine tool spindles, precision instruments, and aerospace systems, where reliability and precision are critical.

What's the Applications of the 706 CD/ P4ADBB Bearing?

The 706 CD/P4ADBB angular contact ball bearing, renowned for its high-speed capability and high load capacity, is widely used in industrial machinery (such as material handling and construction equipment), medical devices (like dental imaging and diagnostic testing equipment), and high-precision industries (including CNC machines and measurement instruments). It also finds application in the wire industry, desulfurization machines, and vacuum filters. As part of super precision 7000 series, it excels in applications requiring exceptional stiffness and precision, delivering reliable performance under varying speed and load conditions. This bearing provides stable and efficient solutions across multiple sectors, ensuring robust operation in demanding environments.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
