Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 706 CD/P4ADGA
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
706 CD/P4ADGA Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Part Number: |
706 CD/P4ADGA Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |

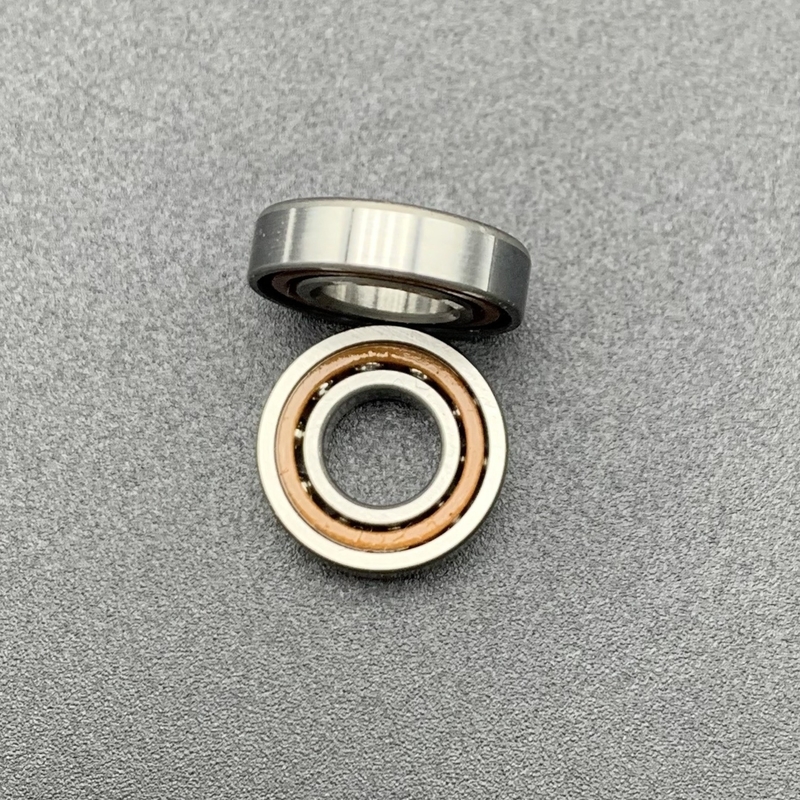

706 CD/P4ADGA Super Precision High Capacity Two Single Rows Angular Contact Ball Bearing Machine Tool Spindles
The 706 CD/P4ADGA bearing, featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 706 CD/P4ADGA | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 6 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 17 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 12 mm (6mm*2 ) | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 2 Rows (2*Single Row) | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.012 kg | |
| Matched Arrangement |
Universal Matching DG , 2 Bearings/Set |
|
| Preload | Extra Light/Class A | |
| Installation Method | Press Fit | |
| Load and Speed | Dynamic Radial Load | 3250 N |
| Static Radial Load | 1530 N | |
| Reference Speed (r/min) | 90,000 rpm | |
| Limit Speed (r/min) | 140,000 rpm | |
What's the Performance Features of 706 CD/P4ADGA Bearing?
What's the Applications of the 706 CD/ P4ADGA Bearing?
The 706 CD/P4ADGA angular contact ball bearing, renowned for its high-speed capability and high load capacity, is widely used in industrial machinery (such as material handling and construction equipment), medical devices (like dental imaging and diagnostic testing equipment), and high-precision industries (including CNC machines and measurement instruments). It also finds application in the wire industry, desulfurization machines, and vacuum filters. As part of super precision 7000 series, it excels in applications requiring exceptional stiffness and precision, delivering reliable performance under varying speed and load conditions. This bearing provides stable and efficient solutions across multiple sectors, ensuring robust operation in demanding environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
