Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 706 CD/P4AQBTB
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
706 CD/P4AQBTB Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Part Number: |
706 CD/P4AQBTB Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |

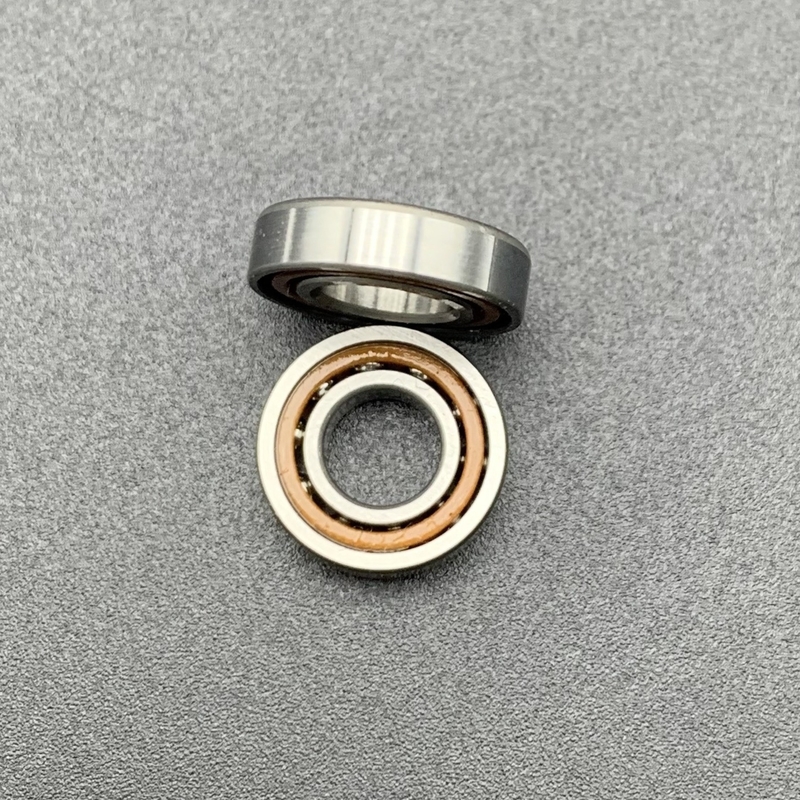

706 CD/P4AQBTB Super Precision High Capacity Four Single Row Angular Contact Ball Bearing Machine Tool Spindles
The 706 CD/P4AQBTB bearingS, featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 706 CD/P4AQBTB | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 6 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 17 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 24mm(6mm *4 ) | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 4 Rows (4*Single Row) | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.024 kg | |
| Matched Arrangement |
QBT ,4 Bearings/Set |
|
| Preload | Light/Class B | |
| Installation Method | Press Fit | |
| Load and Speed | Dynamic Radial Load | 5167 N |
| Static Radial Load | 2935 N | |
| Reference Speed (r/min) | 90,000 rpm | |
| Limit Speed (r/min) | 140,000 rpm | |
What's the Performance Features of 706 CD/P4AQBTB Bearing?
What's the Applications of the 706 CD/ P4AQBTB Bearing?
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
