706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings

Name: 706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 706 CE/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 706 CE/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	706 CE/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Contact Type:	Normal Contact (two-point Contact)	Lubrication:	Grease,Oil
Replaceable With:	SKF	Coating:	Without
Design:	High-speed E	Sealing:	Without

Part Number:	706 CE/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Contact Type:	Normal Contact (two-point Contact)
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Design:	High-speed E
Sealing:	Without

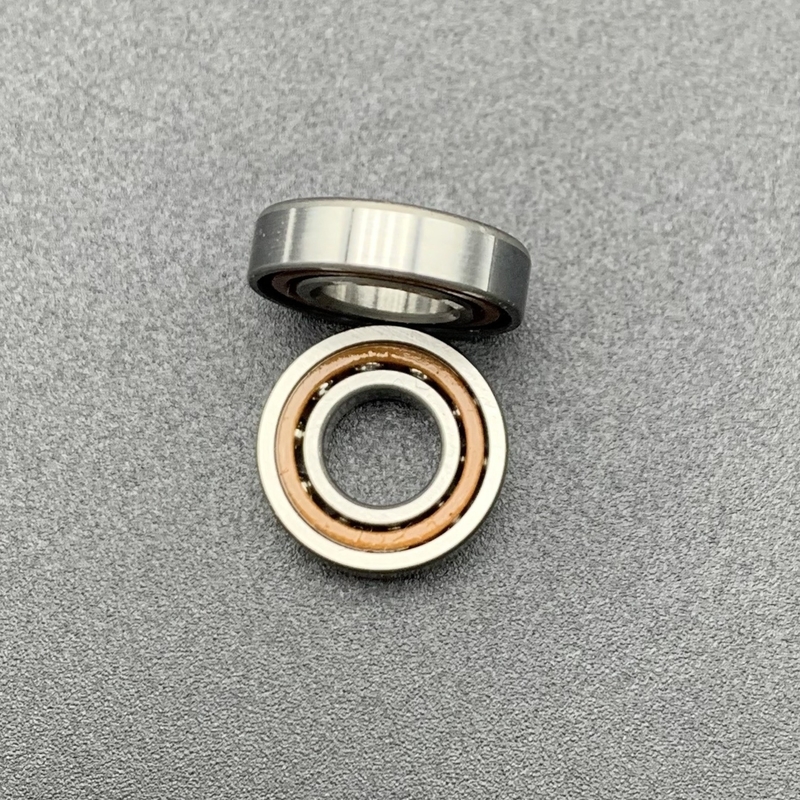

706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings

706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

The 706 CE/P4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	706 CE/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	6 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	17 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	6 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A
	Weight	0.006 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not Applicable
Load and Speed	Dynamic Radial Load	1560 N
	Static Radial Load	500 N
	Reference Speed (r/min)	140,000 rpm
	Limit Speed (r/min)	220,000 rpm

706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings 0

706 CE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings 1

What's the Performance Features of 706 CE/P4A Bearing?

The 706 CE/P4A bearing is a high-precision angular contact ball bearing that features P4A grade accuracy, ensuring tight tolerances and superior performance. Optimized for high-speed operation with minimal vibration, the bearing offers quiet and smooth performance. Constructed from premium materials, it reduces friction and wear, enhancing durability and service life. Preloaded to eliminate internal clearance, this bearing maintains high precision during operation, making it ideal for applications in machine tools, automation systems, aerospace, medical devices, and other fields requiring exceptional reliability and accuracy.

What's the Applications of the 706 CE/P4A Bearing?

The 706 CE/P4A bearing, renowned for its high precision and reliability, is widely applied in machine tools, automation and robotics, aerospace, medical devices, precision instruments, automotive manufacturing, optical instruments, industrial control systems, drones, advanced robotics, printing machinery, and textile machinery. It excels in environments requiring exceptional accuracy and performance, supporting high-speed operations and handling significant radial and axial loads while ensuring stable and precise movement across various critical applications.

CERTIFICATE	RoHS, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
