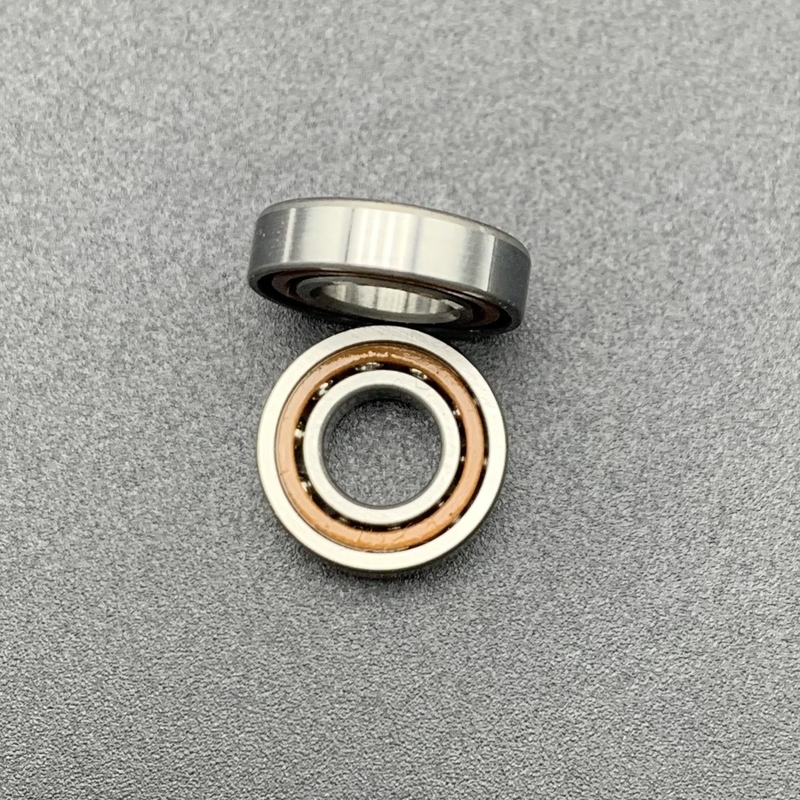

706 CEGA/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearings
706 CEGA/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls
high-speed E design, universally matchable
The 706 CEGA/HCP4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, high speed E design,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
706 CEGA/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
6 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
17 mm |
| Outer Bore Diameter Tolerance |
-0.004mm to 0 |
| Width (B) |
6 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.005 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload |
Extra light / Class A |
| Load and Speed |
Dynamic Radial Load |
1560 N |
| Static Radial Load |
500 N |
| Reference Speed (r/min) |
90,000 rpm |
| Limit Speed (r/min) |
140,000 rpm |
What's the Performance Features of 706 CEGA/HCP4A Bearing?
The 706 CEGA/HCP4A bearing is a high-precision angular contact ball bearing featuring P4A grade accuracy, designed to handle combined radial and axial loads with excellent rigidity and stability. Optimized for high-speed, low-vibration operation, it offers quiet performance and enhanced durability through advanced materials and cage design. Preloaded to eliminate internal clearance and improve stiffness, the bearing ensures high precision during operation.It ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional reliability and accuracy.
What's the Applications of the 706 CEGA/HCP4A Bearing?
The 706 CEGA/HCP4A bearing, renowned for its high precision and reliability, is widely utilized in machine tools, automation and robotics, aerospace, medical devices, precision instruments, automotive manufacturing, optical instruments, industrial control systems, drones, advanced robotics, printing machinery, and textile machinery. Its exceptional design ensures reliable, high-precision operation in applications requiring accuracy, stability, and durability under demanding conditions.
| CERTIFICATE |
RoHS, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
