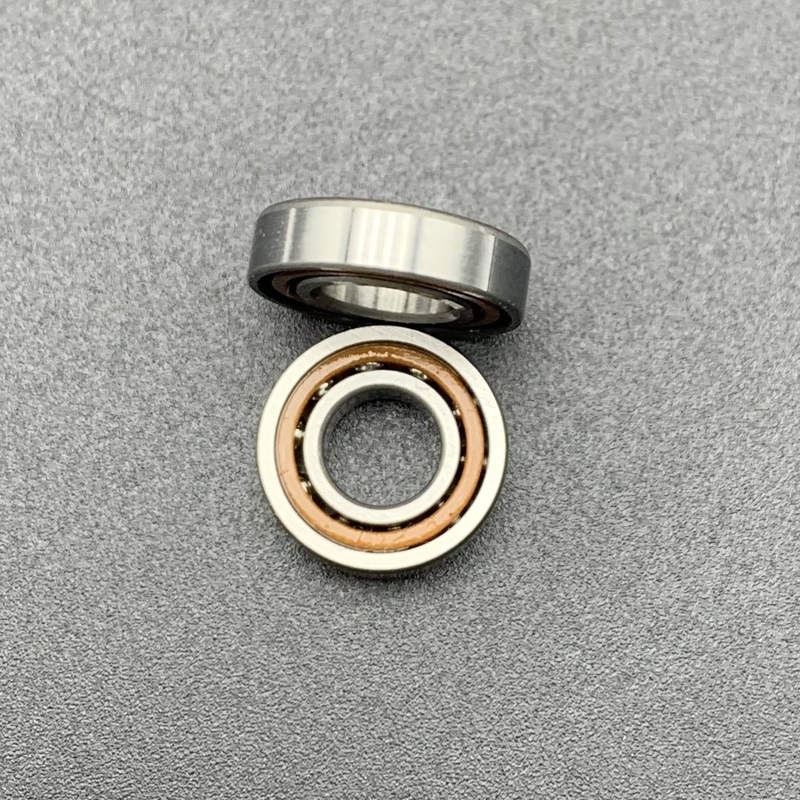

706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings

Name: 706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 706 CEGA/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 706 CEGA/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	706 CEGA/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Contact Type:	Normal Contact (two-point Contact)	Lubrication:	Grease,Oil
Replaceable With:	SKF	Coating:	Without
Design:	High-speed E	Sealing:	Without

Part Number:	706 CEGA/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Feature:	High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity
Contact Type:	Normal Contact (two-point Contact)
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Design:	High-speed E
Sealing:	Without

706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings

706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

high-speed E design, universally matchable

The 706 CEGA/P4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade,high speed E design,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	706 CEGA/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	6 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	17 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	6 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.006 kg
	Matched Arrangement	No
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>)
	Preload	Extra light / Class A
Load and Speed	Dynamic Radial Load	1560 N
	Static Radial Load	500 N
	Reference Speed (r/min)	90,000 rpm
	Limit Speed (r/min)	140,000 rpm

706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings 0

706 CEGA/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearings 1

What's the Performance Features of 706 CEGA/P4A Bearing?

The 706 CEGA/P4A bearing is a high-precision angular contact ball bearing featuring P4A grade accuracy, designed to handle combined radial and axial loads with excellent rigidity and stability. Optimized for high-speed, low-vibration operation, it offers quiet performance and enhanced durability through advanced materials and cage design. Preloaded to eliminate internal clearance and improve stiffness, the bearing ensures high precision during operation.It ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional reliability and accuracy.

What's the Applications of the 706 CEGA/P4A Bearing?

The 706 CEGA/P4A bearing, celebrated for its high precision and reliability, finds extensive use in a variety of sectors including precision machine tools, industrial automation, aerospace engineering, medical equipment, scientific instruments, automotive production lines, optical devices, robotics technology, semiconductor manufacturing, wind energy systems, and textile processing machinery. Its superior performance under demanding conditions ensures it is essential for applications requiring exceptional accuracy, stability, and durability.

CERTIFICATE	RoHS, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
