707 CE/P4ADBC Super Precision High Speed Single Row Angular Contact Ball Bearing

Name: 707 CE/P4ADBC Super Precision High Speed Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 707 CE/P4ADBC
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 707 CE/P4ADBC

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	707 CE/P4ADBC Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF
Coating:	Without	Sealing::	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	707 CE/P4ADBC Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing::	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

707 CE/P4ADBC Super Precision High Speed Single Row Angular Contact Ball Bearing

707 CE/P4ADBA 7*19*12 mm Super Precision High Speed Two Single Row Angular Contact Ball Bearing High Speed Spindle Tools CNC Machine

The 707 CE/P4ADBA bearing,bore diameter is 7 mm, outside diameter is 19mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	707 CE/P4ADBA
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	7 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	19 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	12 mm (2*6 mm)
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	2 (2*Single Row)
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.014kg
	Matched Arrangement	DB ,2 bearings,Back-to-back <>
	Universal Matching Bearing	No
	Preload	Moderate/Class C
Load and Speed	Dynamic Radial Load	3120N
	Static Radial Load	1270 N
	Reference Speed For Grease (r/min)	127,000 rpm
	Limiting Speed For Oil(r/min)	190,000 rpm

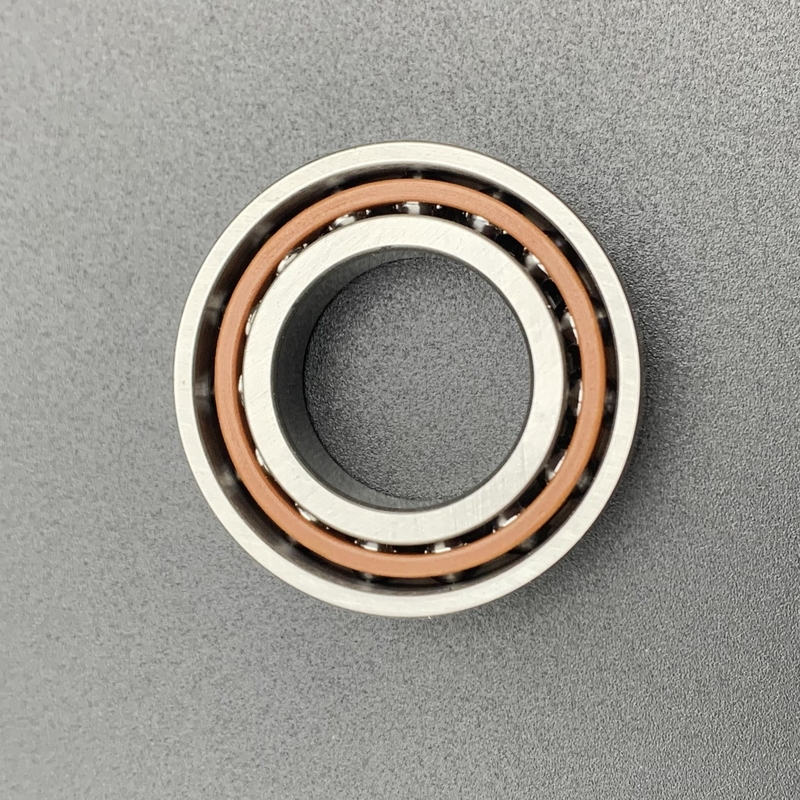

707 CE/P4ADBC Super Precision High Speed Single Row Angular Contact Ball Bearing 0

707 CE/P4ADBC Super Precision High Speed Single Row Angular Contact Ball Bearing 1

What's the Performance Features of 707 CE/P4ADBC Bearing?

The 707 CE/P4ADBC angular contact ball bearing is designed for high-performance applications, offering high-speed capability, significant load capacity, and superior precision due to its P4A class tolerances. Constructed from premium materials for durability and low friction, it ensures minimal deflection under load, making it ideal for maintaining machining accuracy. It provides environmental resistance and long-term reliability, making it suitable for demanding industries such as machine tools, aerospace, medical devices, and precision instruments.

What's the Applications of the 707 CE/P4ADBC Bearing?

The 707 CE/P4ADBC angular contact ball bearing, known for its high precision and reliability, is widely used in industrial machinery, medical devices, aerospace, and construction. It excels in harsh conditions, supporting heavy loads and high temperatures, and ensures stable operation in critical applications. Its versatile performance makes it suitable for a variety of demanding industries.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
