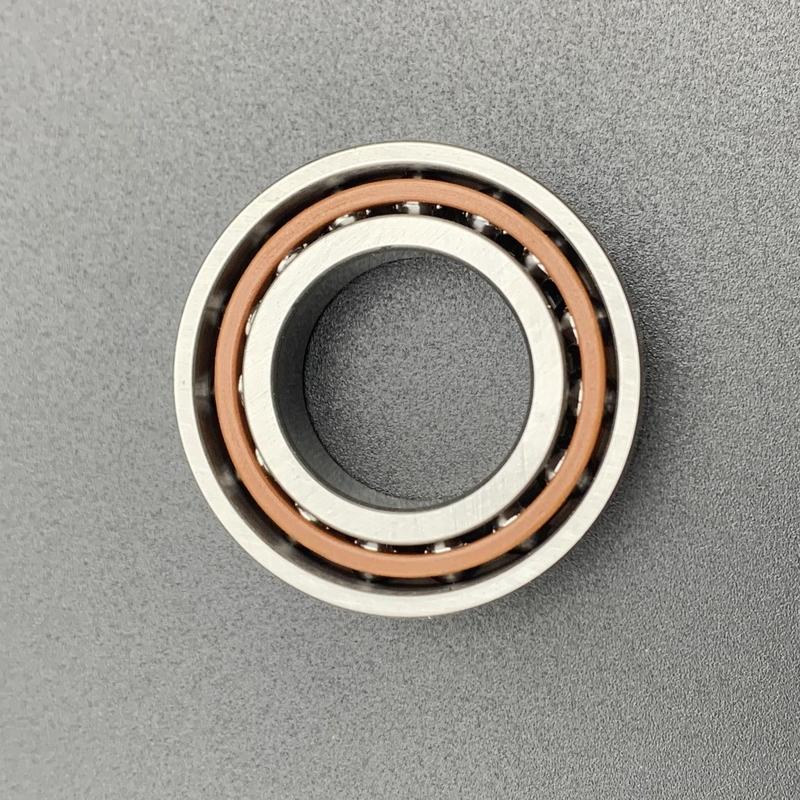

709 ACE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing
709 ACE/HCP4A 9*24*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
The 709 ACE/HCP4A bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
709 ACE/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
9 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
24 mm |
| Outer Bore Diameter Tolerance |
-0.005mm to 0 |
| Width (B) |
7mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.013 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
3450 N |
| Static Radial Load |
1530 N |
| Reference Speed For Grease (r/min) |
85,000 rpm |
| Limiting Speed For Oil(r/min) |
130,000 rpm |
What's the Performance Features of 709 ACE/HCP4A Bearing?
The 709 ACE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 709 ACE/HCP4A Bearing?
The 709 ACE/HCP4A bearing, an angular contact ball bearing known for its super precision and high-speed performance, is widely utilized in machine tool spindles, oilfield equipment, precision instruments, and industrial robots. It excels in applications requiring low noise, high rigidity, durability, and reliability under harsh conditions. This bearing ensures enhanced machining accuracy, stable operation in measuring and optical devices, and supports complex motion systems in robotics. Additionally, it is employed in other high-precision fields such as aerospace, semiconductor manufacturing, and medical equipment, making it indispensable across various industries demanding superior performance and reliability.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
