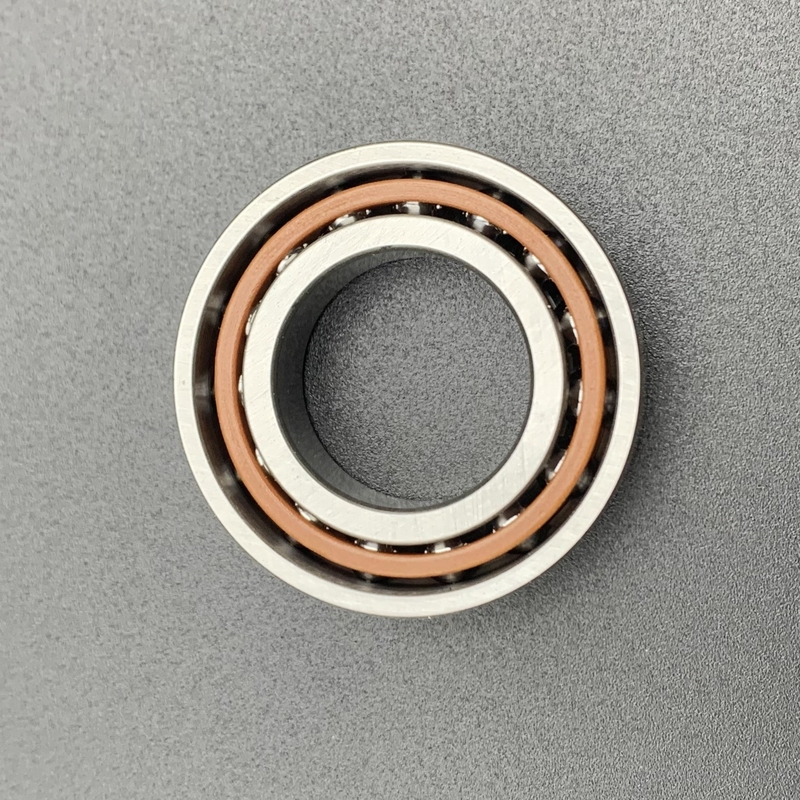

709 CE/HCP4AHDGA Super Precision High Speed Two Rows Angular Contact Ball Bearing
709 CE/HCP4AHDGA 9*24*14 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
The 709 CE/HCP4AHDGA bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
709 CE/HCP4AHDGA |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
9 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
24 mm |
| Outer Bore Diameter Tolerance |
-0.004mm to 0 |
| Width (B) |
14 mm (2*6mm) |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
2 (2*Single Row) |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.026kg |
| Matched Arrangement |
Universal Matching 2 bearings |
| Universal Matching Bearing |
Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload |
EL/Extra Light/Class A |
| Load and Speed |
Dynamic Radial Load |
4230 N |
| Static Radial Load |
1860 N |
| Reference Speed For Grease (r/min) |
85,000 rpm |
| Limiting Speed For Oil(r/min) |
130,000 rpm |
What's the Performance Features of 709 CE/HCP4AHDGA Bearing?
The 709 CE/HCP4AHDGA bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 709 CE/HCP4AHDGA Bearing?
The 709 CE/HCP4AHDGA bearing, a super-precision angular contact ball bearing,noted for its superior high-speed performance, lightweight phenolic resin cage, and optimized chamfer design. This bearing ensures stability during high-speed rotation and is widely used in high-precision machine tool spindles, conveying equipment, electric motors, commercial vehicle systems, mining and screening devices, environmental protection equipment, food processing machinery, and oil and gas applications. Its exceptional performance enhances efficiency, accuracy, and reliability across these diverse industrial sectors.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
