S71902 ACD/P4ADGB Super Precision Single Row Angular Contact Ball Bearing 7902

Name: S71902 ACD/P4ADGB Super Precision Single Row Angular Contact Ball Bearing 7902
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71902 ACD/P4ADGB
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71902 ACD/P4ADGB

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S71902 ACD/P4ADGB Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK,7902 2RZ
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71902 ACD/P4ADGB Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK,7902 2RZ
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

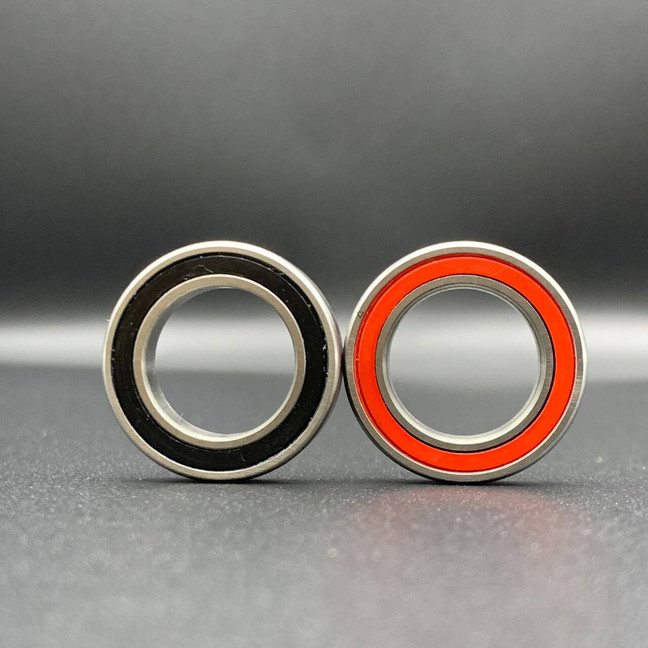

S71902 ACD/P4ADGB Super Precision Single Row Angular Contact Ball Bearing 7902

S71902 ACD/P4ADGB 15*28*14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals

The S71902 ACD/P4ADGB bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S71902 ACD/P4ADGB
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	15 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	28 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	14 mm (2*7 mm)
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	2 (2* Single Row)
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Number of bearings in matched set	2
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.03 kg
	Matched Arrangement	Universal Matching
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	L/Light/Class B
Load and Speed	Dynamic Radial Load	6180 N
	Static Radial Load	3600 N
	Reference Speed For Grease (r/min)	53,000 rpm
	Limiting Speed For Oil(r/min)	80,000 rpm

S71902 ACD/P4ADGB Super Precision Single Row Angular Contact Ball Bearing 7902 0

S71902 ACD/P4ADGB Super Precision Single Row Angular Contact Ball Bearing 7902 1

What's the Performance Features of S71902 ACD/P4ADGB Bearing?

The S71902 ACD/P4ADGB angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71902 ACD/P4ADGB Bearing?

The S71902 ACD/P4ADGB bearing is renowned for its high precision, reliability, and durability.It is widely used in critical applications across various industries, including machine tools (such as machining centers, milling machines, and lathes), robotics (for accurate movements of robotic arms), printing machinery (to ensure high-precision positioning and stable operation), and measuring equipment (providing necessary support and stability for accurate measurements). Its exceptional performance makes it indispensable for ensuring optimal functionality and precision in demanding industrial environments.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
