S71902 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7902

Name: S71902 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7902
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71902 ACDGA/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71902 ACDGA/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S71902 ACDGA/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK, 7902
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71902 ACDGA/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK, 7902
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

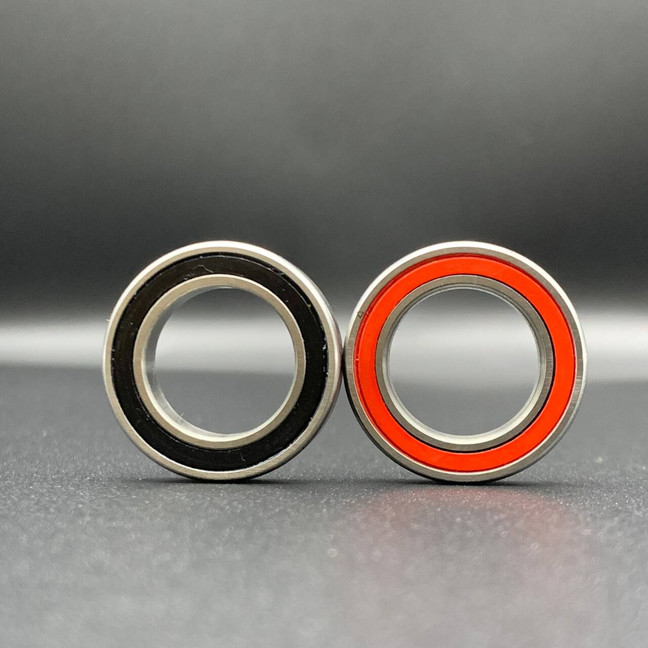

S71902 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7902

S71902 ACDGA/P4A 15*28*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals

The S71902 ACDGA/P4A bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S71902 ACDGA/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	15 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	28 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.015 kg
	Matched Arrangement	No
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	EL/Extra Light/Class A
Load and Speed	Dynamic Radial Load	3770 N
	Static Radial Load	1800 N
	Reference Speed For Grease (r/min)	53,000 rpm
	Limiting Speed For Oil(r/min)	80,000 rpm

S71902 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7902 0

S71902 ACDGA/P4A Super Precision Single Row Angular Contact Ball Bearing 7902 1

What's the Performance Features of S71902 ACDGA/P4A Bearing?

The S71902 ACDGA/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71902 ACDGA/P4A Bearing?

The S71902 ACDGA/P4A bearing is a high-performance precision angular contact ball bearing known for its high load capacity, speed performance, and exceptional accuracy. It finds extensive use in demanding applications across various industries, including machine tools, semiconductor manufacturing, medical devices, aerospace, automotive (especially in racing and supercars), and industrial robots. Its ability to deliver high precision and reliability under extreme conditions makes it an essential component for ensuring optimal performance and longevity in these critical sectors.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
