Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71902 CE/HCP4AH
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
71902 CE/HCP4AH Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK,7902 CE/HCP4AH |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71902 CE/HCP4AH Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK,7902 CE/HCP4AH |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

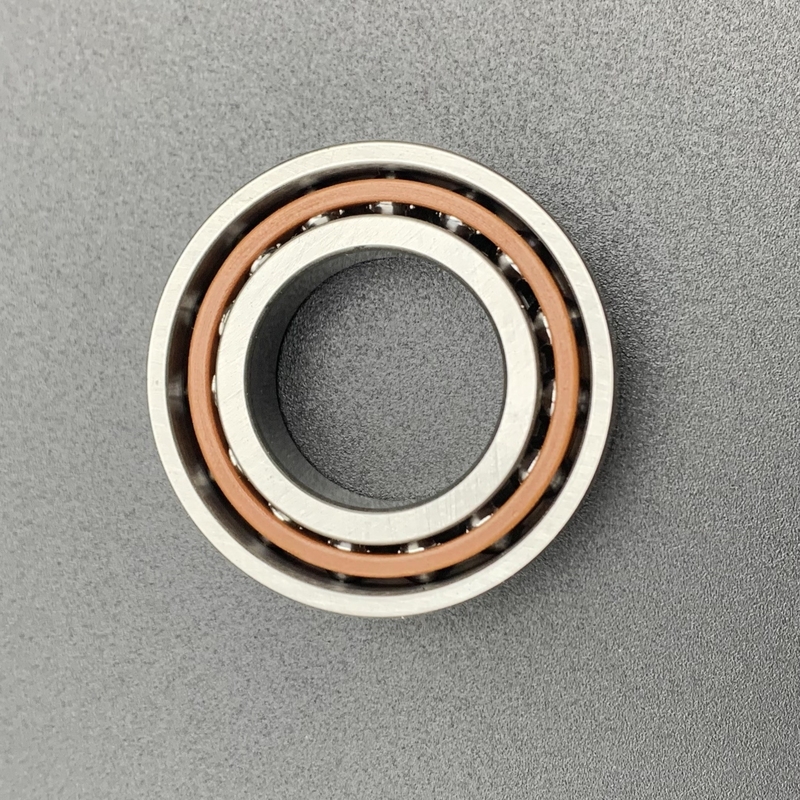

71902 CE/HCP4AH 15*28*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed
Super-precision, high-speed E design, single row angular contact ball bearing suitable for direct oil-air lubrication
The 71902 CE/HCP4AH bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71902 CE/HCP4AH | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 28 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 7 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Special feature | Suitable for direct oil-air lubrication | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.013 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 3190 N |
| Static Radial Load | 1370 N | |
| Reference Speed For Grease (r/min) | 90,000 rpm | |
| Limiting Speed For Oil(r/min) | 140,000 rpm | |
What's the Performance Features of 71902 CE/HCP4AH Bearing?
The 71902 CE/HCP4AH angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71902 CE/HCP4AH Bearing?
The 71902 CE/HCP4AH bearing is a high-precision component crucial for various industries, including machine tool manufacturing and maintenance, robotics for accurate movement, printing machinery for quality and efficiency, measurement devices for precision, semiconductor production for reliable silicon wafer handling, marine gyro stabilizers for vessel stability, and medical devices requiring precise rotational movements. Its exceptional accuracy and reliability ensure optimal performance across these diverse applications, making it an essential element in demanding industrial environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
