Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71902 CEGA/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
71902 CEGA/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK,7902 CEGA/HCP4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71902 CEGA/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK,7902 CEGA/HCP4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

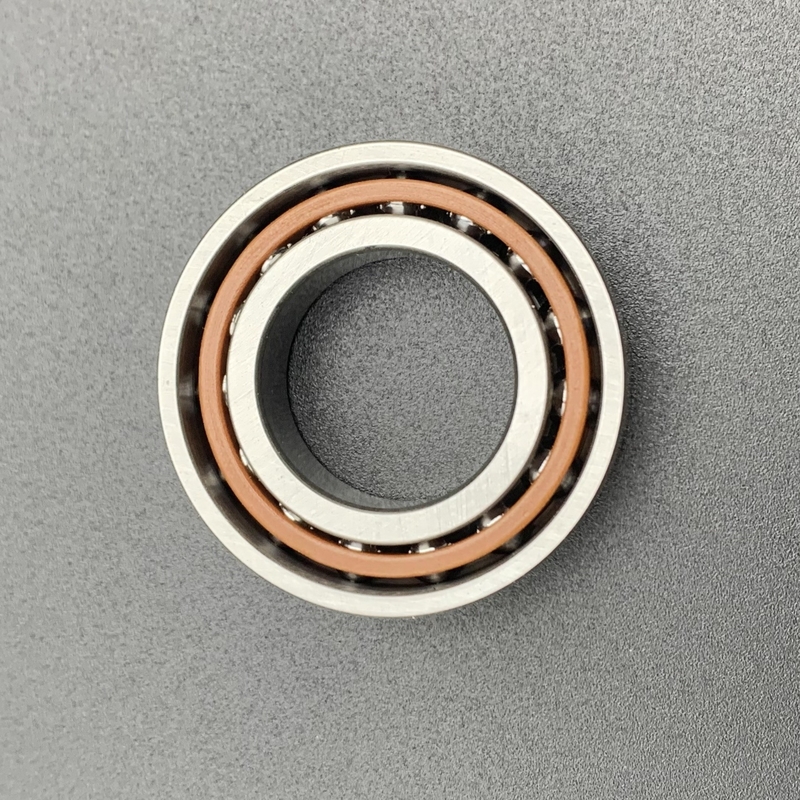

71902 CEGA/HCP4A 15*28*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed
Super-precision, high-speed E design, universally matchable single row angular contact ball bearing
The 71902 CEGA/HCP4A bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71902 CEGA/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 28 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 7 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.013 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings | |
| Preload | EL/Extra Light/Class A | |
| Load and Speed | Dynamic Radial Load | 3190 N |
| Static Radial Load | 1370 N | |
| Reference Speed For Grease (r/min) | 90,000 rpm | |
| Limiting Speed For Oil(r/min) | 140,000 rpm | |
What's the Performance Features of 71902 CEGA/HCP4A Bearing?
The 71902 CEGA/HCP4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71902 CEGA/HCP4A Bearing?
The 71902 CEGA/HCP4A bearing is distinguished by its high precision and performance, making it essential in various industries. It is used in mechanical devices for precise and efficient operation, in mining for stable and safe operation of heavy equipment, and in steel manufacturing to reduce vibration and improve production efficiency. This bearing ensures reliable long-term operation in power equipment like generators and transformers, reduces friction and wear in paper production machinery, and enhances the performance and reliability of automotive components such as engines and transmissions. Its versatility and robust design make it a critical component across a wide range of demanding industrial applications, ensuring optimal functionality and reliability.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
