S71904/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7904 2RZ

Name: S71904/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7904 2RZ
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71904/VA9D1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71904/VA9D1

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S71904/VA9D1 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Special Feature:	Suitable For Driven Tools	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71904/VA9D1 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Special Feature:	Suitable For Driven Tools
Contact Type:	Normal Contact (two-point Contact)

S71904/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7904 2RZ

S71904/VA9D1 20*37*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision universally matchable single row angular contact ball bearing with seals for driven tools

The S71904/VA9D1 bearing,bore diameter is 20 mm, outside diameter is 37 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4 precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S71904/VA9D1
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	20 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	37 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	9 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4
	Weight	0.037 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	5720 N
	Static Radial Load	3050 N
	Reference Speed For Grease (r/min)	30,000 rpm
	Limiting Speed For Oil(r/min)	70,000 rpm

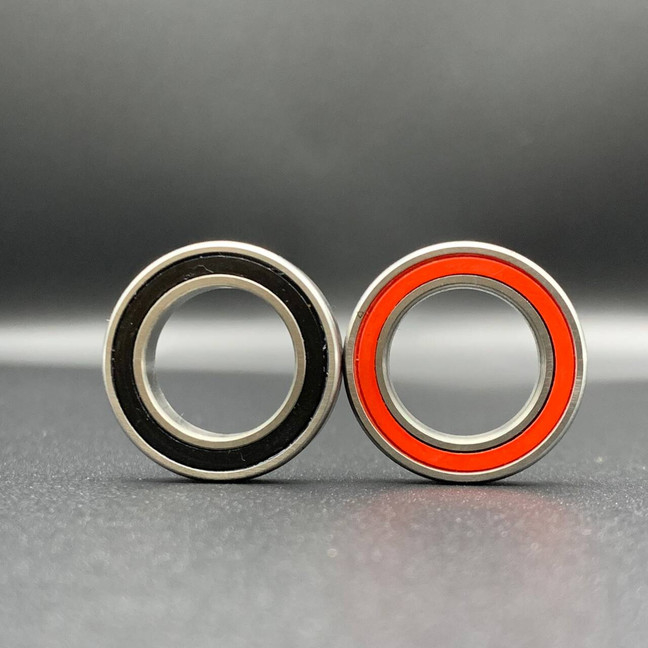

S71904/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7904 2RZ 0

S71904/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7904 2RZ 1

What's the Performance Features of S71904/VA9D1 Bearing?

The S71904/VA9D1 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71904/VA9D1 Bearing?

The S71904/VA9D1 bearing,is renowned for its high precision, stability, and durability, making it indispensable across a variety of industries. It excels in mechanical manufacturing, particularly in high-speed machining centers and milling machines, enhances performance and reliability in new energy vehicles, and meets the extreme demands of aerospace applications. Additionally, it plays a critical role in wind turbine generators within the energy sector and extends its utility to food processing, plastic, and woodworking machinery. Its versatility and robust performance make it a key component driving technological advancement and operational efficiency in diverse industrial settings.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
