S7005 ACD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

Name: S7005 ACD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S7005 ACD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S7005 ACD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Super Precision Angular Contact Bearing 7005, Single Row Ball Bearing 2RZ, ACD/P4A Precision Bearing with Warranty


Part Number:	S7005 ACD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S7005 ACD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

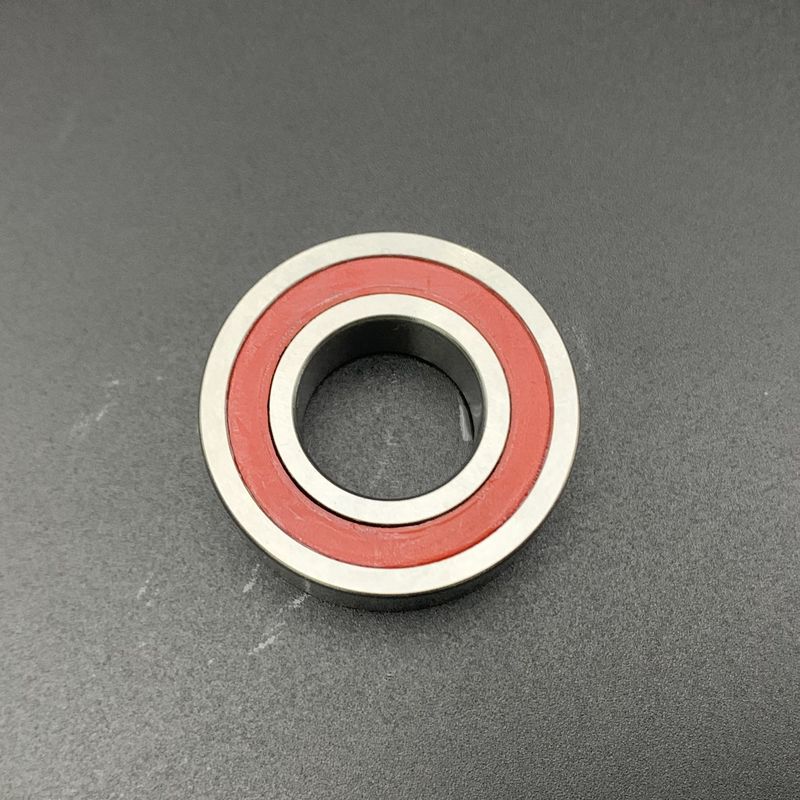

S7005 ACD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

S7005 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7005 2RZ

S7005 ACD/P4A 25×47×12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, single row angular contact ball bearing with seals.

Product Specifications

Dimensions
Part Number	S7005 ACD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Inner Bore Diameter (d)	25 mm
Inner Bore Diameter Tolerance	-0.005mm to 0
Outer Bore Diameter (D)	47 mm
Outer Bore Diameter Tolerance	-0.006mm to 0
Width (B)	12 mm
Width Tolerance	-0.2mm to 0
Specifications
Contact Angle	25° (15°, 40° Available)
Material	Chrome Steel
Cage Material	Phenolic
Number of Rows	1 Single Row
Seal Type	Seal on both sides
Temperature Range	-30°C to 150°C
Lubrication	Grease
Tolerance Class	P4A better than P4
Weight	0.079 kg
Matched Arrangement	No
Universal Matching Bearing	No
Preload	Not applicable
Load and Speed
Dynamic Radial Load	9230 N
Static Radial Load	5000 N
Reference Speed For Grease (r/min)	34,000 rpm
Limiting Speed For Oil (r/min)	50,000 rpm

Performance Features

The S7005 ACD/P4A bearing is engineered for high-performance applications, featuring P4A grade precision and an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

Applications

The S7005 ACD/P4A bearing is a high-precision angular contact ball bearing designed for demanding industrial applications. It excels in sectors such as:

Steel, aluminum, chemical, cement, and paper production
Wind power generation and construction machinery
Automotive engines and gearboxes
Coal mining, port equipment, and metallurgical devices
Elevator traction machines and high-speed plastic machinery
Compressors and machining centers
Heavy trucks and buses

Its robust design ensures accuracy and durability across a wide range of challenging industrial environments.

Certification & Services

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity

Service

OEM & ODM Customized Services

Samples

Please Contact Us

Service Support

Online Support, Professional Service

Size Availability

Standard, For custom sizes please contact us

Manufacturer

Factory Manufacturer
