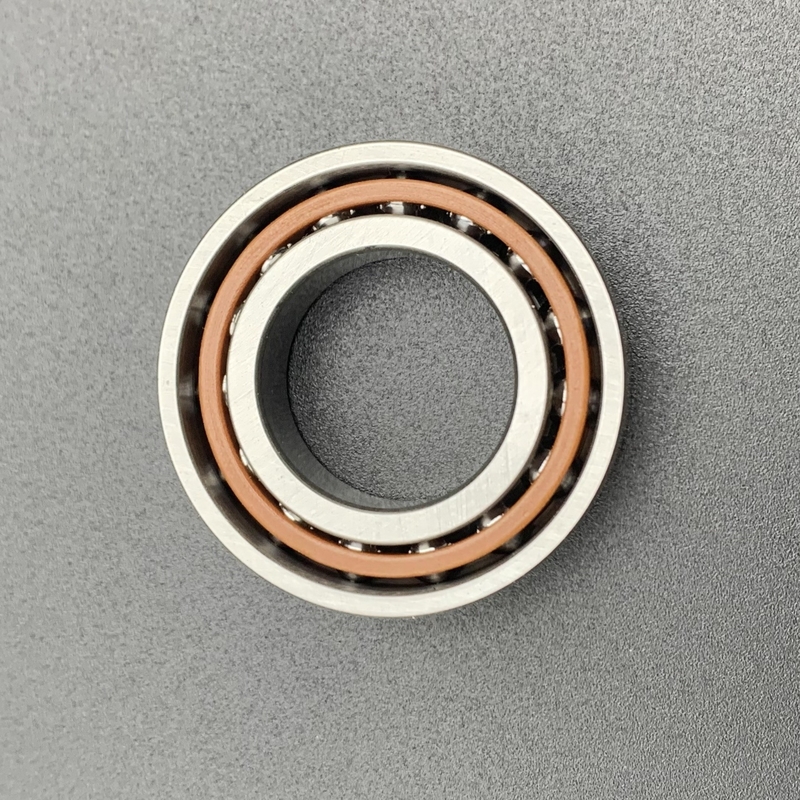

7005/VA9D1 Super Precision Single Row Angular Contact Ball Bearing

Name: 7005/VA9D1 Super Precision Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7005/VA9D1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7005/VA9D1

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	7005/VA9D1 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Special Feature:	Suitable For Driven Tools	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7005/VA9D1 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Special Feature:	Suitable For Driven Tools
Contact Type:	Normal Contact (two-point Contact)

7005/VA9D1 Super Precision Single Row Angular Contact Ball Bearing

7005/VA9D1 25*47*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision universally matchable single row angular contact ball bearing for driven tools

The 7005/VA9D1 bearing,bore diameter is 25 mm, outside diameter is 47 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4 precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	7005/VA9D1
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	25 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	47 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	12 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease,oil
	Tolerance Class	P4
	Weight	0.079kg
	Matched Arrangement	No
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	9230 N
	Static Radial Load	5000 N
	Reference Speed For Grease (r/min)	27,000 rpm
	Limiting Speed For Oil(r/min)	35,000 rpm

7005/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 0

7005/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 1

What's the Performance Features of 7005/VA9D1 Bearing?

The 7005/VA9D1 bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the 7005/VA9D1 Bearing?

The 7005/VA9D1 angular contact ball bearing is renowned for its versatility and reliability across various industries, excelling in applications ranging from forming machines and frozen food processing equipment, where it withstands temperature changes and mechanical stress, to insertion machines and hoists that require frequent starts and stops, benefiting from its low friction and high precision. In mining and ore dressing, it handles heavy loads and harsh environments, while in the food and packaging industry, its effective sealing and lifetime lubrication ensure safety and continuous operation. Additionally, in woodworking machinery, it supports high-speed operations with relatively low loads, making the 7005 bearing a critical component for ensuring efficiency and durability across these diverse industrial uses.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
