Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71905 CD/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-3 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
71905 CD/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71905 CD/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

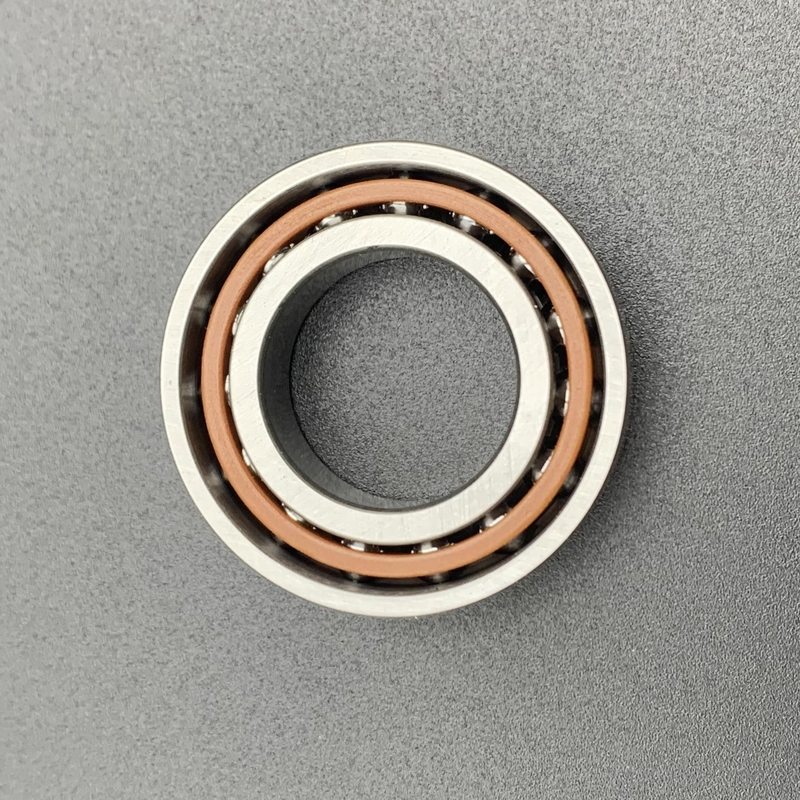

71905 CD/HCP4A 25*42*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed
Super-precision, high-capacity, single row angular contact ball bearing
The 71905 CD/HCP4A bearing,bore diameter is 25 mm, outside diameter is 42 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71905 CD/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 25 mm |
| Inner Bore Diameter Tolerance | -0.005mm to 0 | |
| Outer Bore Diameter (D) | 42 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 9 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.039 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 6760 N |
| Static Radial Load | 4000 N | |
| Reference Speed For Grease (r/min) | 45,000 rpm | |
| Limiting Speed For Oil(r/min) | 70,000 rpm | |
What's the Performance Features of 71905 CD/HCP4A Bearing?
The 71905 CD/HCP4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71905 CD/HCP4A Bearing?
The 71905 CD/HCP4A bearing,is a versatile and reliable component used across a wide range of industries. It supports various mechanical processing equipment such as horizontal rubber machinery, leather processing devices, electronic component forming machines, and beverage production lines. Additionally, it is employed in diverse industrial applications including twisting testing machines, waste incinerators, industrial sewing machines, and plastic pipe extrusion equipment. Notably, it excels as a spindle bearing in machine tools, where its medium-speed heavy-duty capability and ultra-precision are crucial for machining centers and grinding machines, making it an essential part for ensuring high reliability and performance in demanding industrial environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
