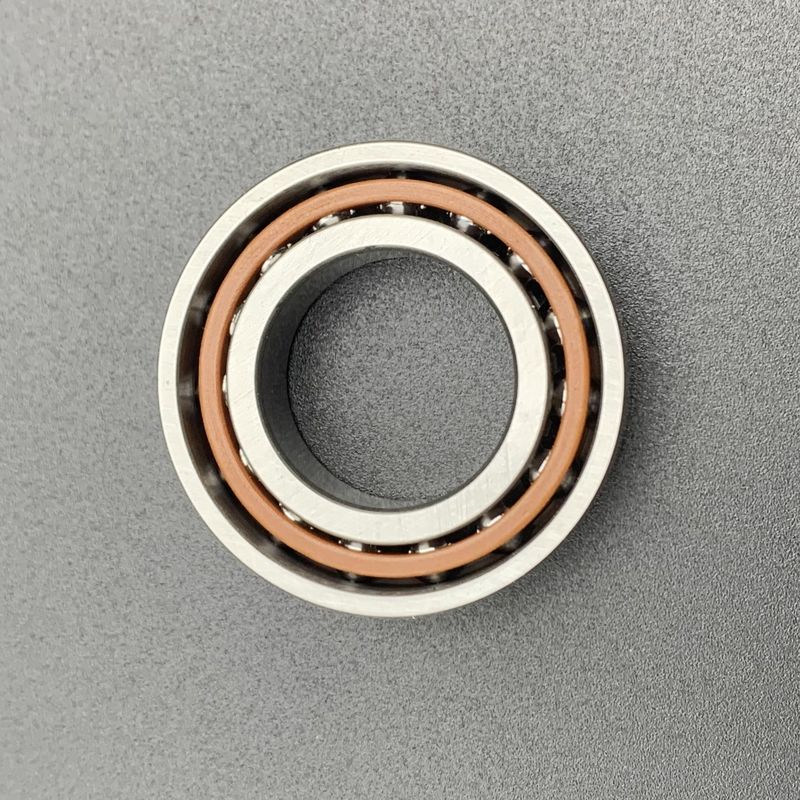

71905 CD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

Name: 71905 CD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71905 CD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71905 CD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                71905 CD/P4A precision ball bearing, 7905 angular contact bearing, super precision single row bearing


Part Number:	71905 CD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71905 CD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

71905 CD/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

71905 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7905

Product Overview

Super-precision, high-capacity, single row angular contact ball bearing designed for high-speed applications. The 71905 CD/P4A bearing features precise dimensions, high static load capacity, P4A precision grade, and delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications

Part Number	71905 CD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Inner Bore Diameter (d)	25 mm
Inner Bore Diameter Tolerance	-0.005mm to 0
Outer Bore Diameter (D)	42 mm
Outer Bore Diameter Tolerance	-0.006mm to 0
Width (B)	9 mm
Width Tolerance	-0.2mm to 0
Contact Angle	15° (25°, 40° Available)
Material	Chrome Steel
Cage Material	Phenolic
Number of Rows	1 Single Row
Seal Type	Open
Temperature Range	-30°C to 150°C
Lubrication	Grease or Oil
Tolerance Class	P4A better than P4 (ABEC-7)
Weight	0.042 kg
Dynamic Radial Load	6760 N
Static Radial Load	4000 N
Reference Speed For Grease	38,000 rpm
Limiting Speed For Oil	56,000 rpm

Performance Features

Very tight tolerances suitable for precise machinery
Ability to handle both radial and axial loads simultaneously
High-speed operation with stability
Low torque and friction for energy efficiency
Enhanced rigidity for accuracy under heavy loads
Durability with extended service life
Effective performance across a wide temperature range

Applications

The 71905 CD/P4A bearing is a versatile and high-precision component crucial for a wide range of industrial applications including:

Freezers and refrigeration equipment
Letterpress printing machines
Vacuum dryers and pneumatic welding machines
Plastic color mixers and chemical fiber equipment
Ultrasonic welding machines and hybrid heat exchangers
Ironing equipment and injection molding machines
Confectionery machinery and machine tools
Road traffic equipment

Certifications & Services

Certifications	RoHS & REACH, IATF16949:2016
Features	High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service	OEM & ODM Customized Services
Samples	Please Contact Us
Support	Online Support, Professional Service
Size Options	Standard sizes available, custom sizes upon request
Manufacturer	Factory Manufacturer
