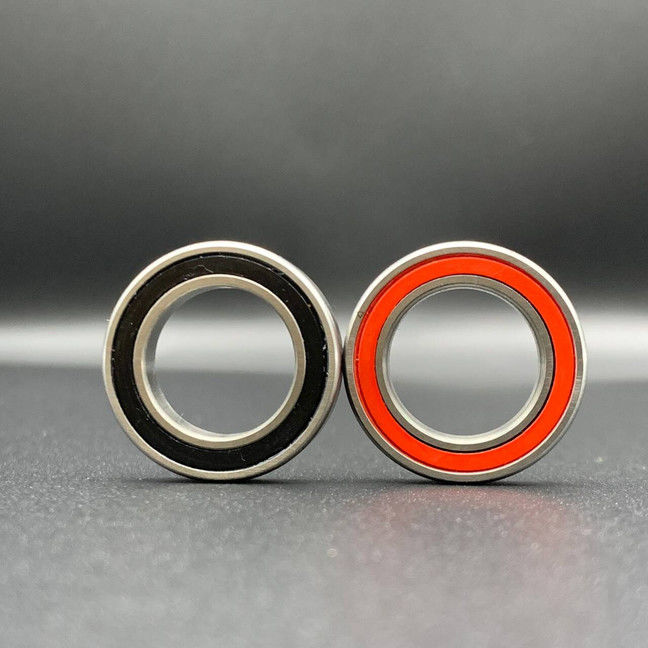

Super Precision 25x42x9 mm High Speed Angular Contact Ball Bearing Single Row Bearing

Name: Super Precision 25x42x9 mm High Speed Angular Contact Ball Bearing Single Row Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71905/VA9D1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71905/VA9D1

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Super Precision Angular Contact Ball Bearing, Single Row Ball Bearing 7905 2RZ, Angular Contact Bearing with Warranty


Part Number:	S71905/VA9D1 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Special Feature:	Suitable For Driven Tools	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71905/VA9D1 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Special Feature:	Suitable For Driven Tools
Contact Type:	Normal Contact (two-point Contact)

Super Precision 25x42x9 mm High Speed Angular Contact Ball Bearing Single Row Bearing

S71905/VA9D1 Super Precision Single Row Angular Contact Ball Bearing 7905 2RZ

Product Overview

71905/VA9D1 25×42×9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with high-speed capability. Super-precision universally matchable single row angular contact ball bearing with seals for driven tools.

The 71905/VA9D1 bearing features precise dimensions, high static load capacity, P4 precision grade, delivering superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications

Part Number	71905/VA9D1
Bearing Type	Angular Contact
Measurement Unit	Metric
Inner Bore Diameter (d)	25 mm
Inner Bore Diameter Tolerance	-0.004mm to 0
Outer Bore Diameter (D)	42 mm
Outer Bore Diameter Tolerance	-0.004mm to 0
Width (B)	9 mm
Width Tolerance	-0.2mm to 0
Contact Angle	25° (15°, 40° Available)
Material	Chrome Steel
Cage Material	Phenolic
Number of Rows	1 Single Row
Seal Type	Seal on both sides
Temperature Range	-30°C to 150°C
Lubrication	Grease
Tolerance Class	P4
Weight	0.043 kg
Matched Arrangement	No
Universal Matching Bearing	Yes, back-to-back (<>), face-to-face (><) or tandem (>>) DB, DF, DT 2 bearings
Preload	Not applicable
Dynamic Radial Load	6370 N
Static Radial Load	3800 N
Reference Speed For Grease (r/min)	25,000 rpm
Limiting Speed For Oil (r/min)	35,000 rpm

Product Images

Performance Features

Engineered for high-precision and high-performance applications
Very tight tolerances suitable for precise machinery
Ability to handle both radial and axial loads simultaneously
High-speed operation with stability
Low torque and friction for energy efficiency
Enhanced rigidity for accuracy under heavy loads
Durability with extended service life
Effective performance across a wide temperature range

Applications

The 71905/VA9D1 bearing is crucial in multiple sectors due to its capability to handle radial and axial loads at high speeds with precision:

Precision machine tools - ensures high-speed rotational accuracy and stability
High-speed rail - supports safe and efficient train operations
Aerospace - meets stringent demands under extreme conditions
Automation equipment and robotics - facilitates precise control and operation
Wind turbines and high-speed motors

Certifications & Services

Certificates	RoHS & REACH, IATF16949:2016
Features	High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service	OEM & ODM Customized Services
Samples	Please Contact Us
Support	Online Support, Professional Service
Size Options	Standard, For custom sizes please contact us
Manufacturer	Factory Manufacturer
