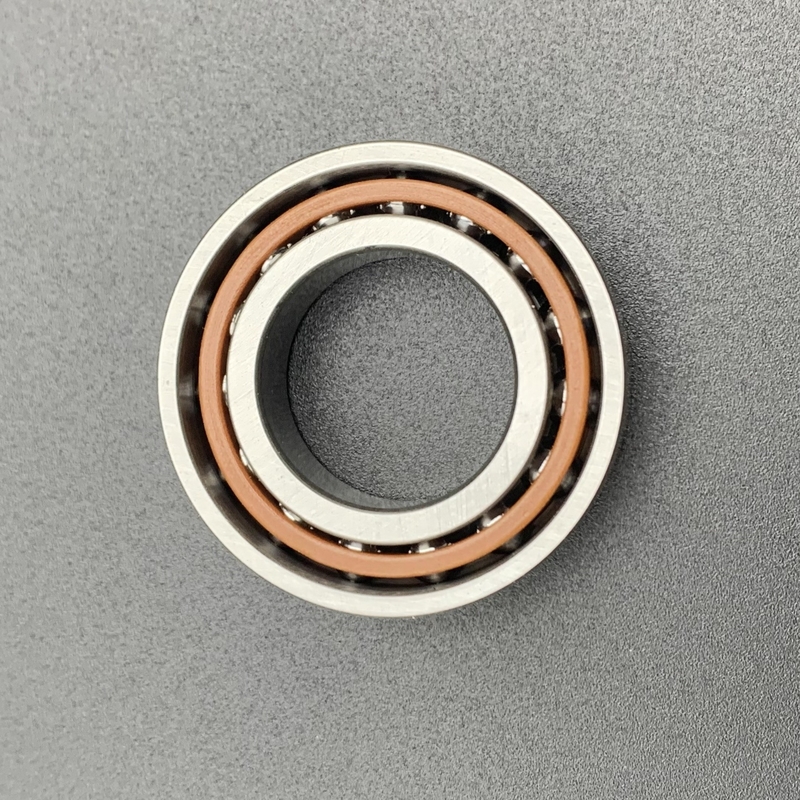

7006 CE/HCP4A Super Precision Single Row Angular Contact Ball Bearing
7006 CE/HCP4A 30*55*13 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed E design, single row angular contact ball bearing
The 7006 CE/HCP4A bearing,bore diameter is 30 mm, outside diameter is 55 mm,width is 13 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
7006 CE/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
30 mm |
| Inner Bore Diameter Tolerance |
-0.005mm to 0 |
| Outer Bore Diameter (D) |
55 mm |
| Outer Bore Diameter Tolerance |
-0.007mm to 0 |
| Width (B) |
13 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.10 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
9360 N |
| Static Radial Load |
5200 N |
| Reference Speed For Grease (r/min) |
47,000 rpm |
| Limiting Speed For Oil(r/min) |
73,000 rpm |
What's the Performance Features of 7006 CE/HCP4A Bearing?
The 7006 CE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 7006 CE/HCP4A Bearing?
The 7006 CE/HCP4A bearing,is distinguished by its high precision and reliability, making it essential in a wide range of industrial applications. It supports operations in various machinery such as heel pressing machines, electronic glass grinders, engraving machines, printing presses, pneumatic mixers, welding equipment, and dehumidifiers, as well as specialized devices like rotary dryers, laboratory mixers, and plastic production machines. Additionally, it plays a critical role in construction and mining equipment, concrete machinery, magnetic separators, and chemical industry dryers. Its versatility ensures stable performance across different sectors, from manufacturing and construction to research and food processing, supporting both large industrial setups and small mechanical components with efficiency and durability.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
