Super Precision N series High-speed Cylindrical Roller Bearings for Robot Reducers

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: N9

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 100000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Name:

High-speed Cylindrical Roller Bearings

Application:

Robot Ruducers

Name:	High-speed Cylindrical Roller Bearings
Application:	Robot Ruducers

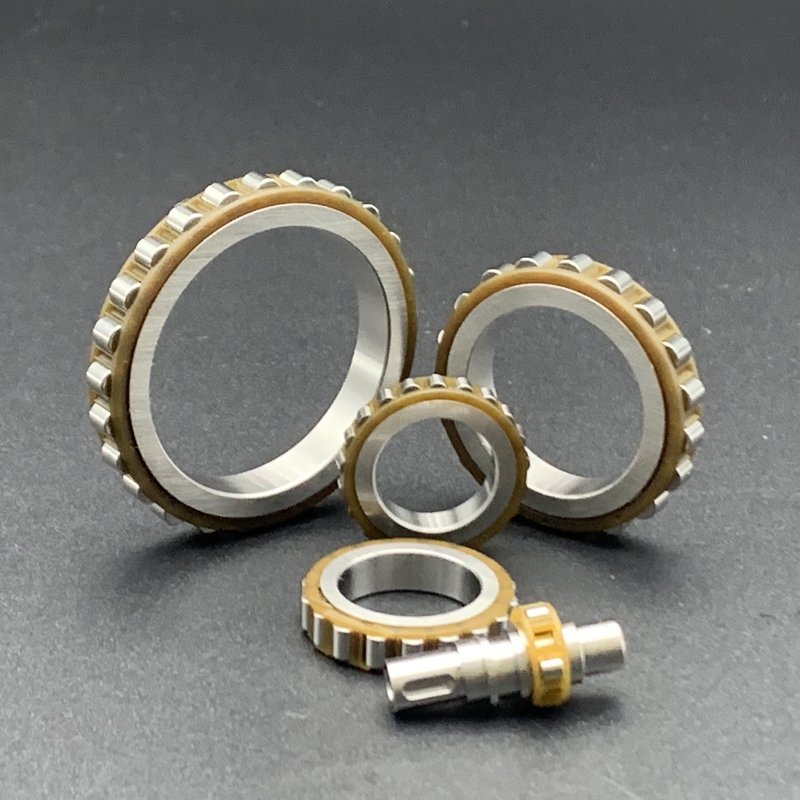

Super Precision N series High-speed Cylindrical Roller Bearings for Robot Reducers

Super Precision N series High-speed Cylindrical Roller Bearings for Robot Reducers N9,N15,N17,N25,N35,N45 Robotics

Cylindrical roller bearings without an outer ring are known as outer ring-less roller bearings. Such bearings are adopted in specific application scenarios, for instance, in systems where space is limited or special configurations are required. The design without an outer ring makes the installation of the bearing more flexible, allowing it to come into direct contact with other parts to achieve specific mechanical functions. In certain industrial applications, such as automotive transmission systems or precision machinery, outer ring-less roller bearings are widely used due to advantages like compact structure, lightweight, and high load-bearing capacity.

Super Precision N series High-speed Cylindrical Roller Bearings for Robot Reducers 0

Name	High-speed Cylindrical Roller Bearings for Robot Reducers
Bearing Number	Boundary Dimensions(mm)				Basic Load Rating(N)		Limiting Speed(rpm)
	Inner Diameter	Outer Diameter	Width	Chamfer	Dynamic	Static	Grease	Oil
	d	D	B	r(min)	Cr	Cor	Non-contact
	mm	mm	mm	mm	N	N	r/min	r/min
N9	9	14	3	0.3	1760	1900	21200	26600
N15	15	24	5	0.3	2560	2800	14300	17200
N17	17	26	5.6	0.3	3560	3900	13300	16000
N25	25	37	7	0.3	5120	5600	8700	10600
N35	35	47	7	0.3	7390	8100	7300	6500
N45	45	58	7	0.3	9300	10200	6900	6200

This series of products is continuously evolving and advancing in response to growing customer demand.
