71806 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7806

Name: 71806 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7806
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71806 ACD/HCP4
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71806 ACD/HCP4

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	71806 ACD/HCP4 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7806A5SN24TRP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71806 ACD/HCP4 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7806A5SN24TRP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

71806 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7806

71806 ACD/HCP4 30*42*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed

Super-precision, high-capacity, single row angular contact ball bearing

The 71806 ACD/HCP4 bearing,bore diameter is 30 mm, outside diameter is 42 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71806 ACD/HCP4
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	30 mm
	Inner Bore Diameter Tolerance	-0.005mm to 0
	Outer Bore Diameter (D)	42 mm
	Outer Bore Diameter Tolerance	-0.006mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4 (ABEC-7)
	Weight	0.024 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	4160 N
	Static Radial Load	3550 N
	Reference Speed For Grease (r/min)	34,000 rpm
	Limiting Speed For Oil(r/min)	53,000 rpm

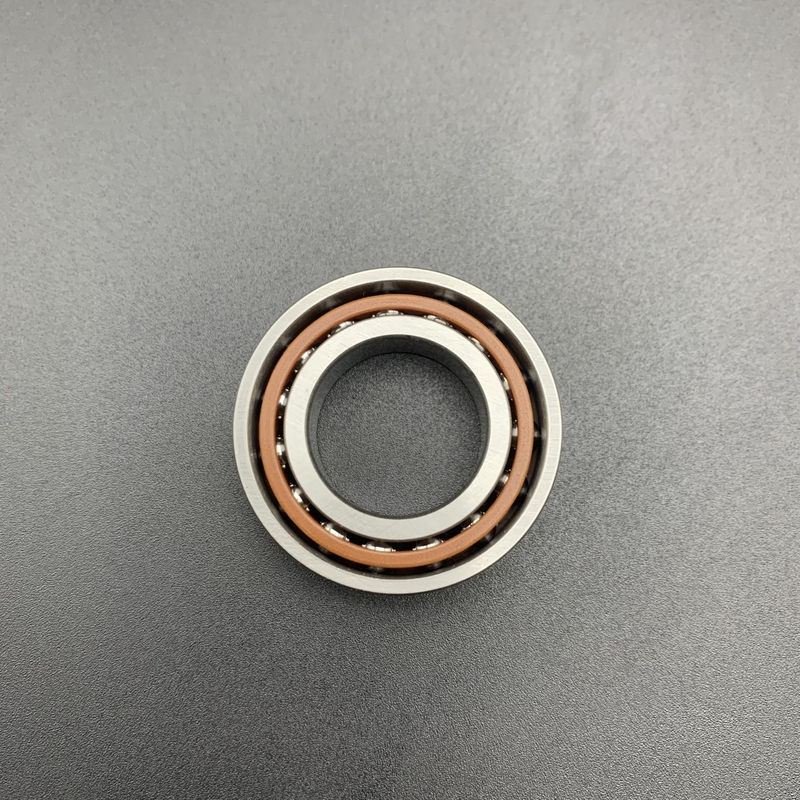

71806 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7806 0

71806 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7806 1

What's the Performance Features of 71806 ACD/HCP4 Bearing?

The 71806 ACD/HCP4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71806 ACD/HCP4 Bearing?

The 71806 ACD/HCP4,high-precision angular contact ball bearing, featuring high-speed capabilities, high rigidity, and hybrid ceramic balls, excels in various applications. It is widely used in high-precision machining equipment such as machine tool spindles and testing instruments, industrial fluid systems like pumps and fluid control devices, specialized machinery including material handling and automation equipment, and other specific scenarios such as medical and food processing machines and light industry equipment. This bearing is particularly suited for environments requiring long life and high reliability, especially under conditions of high speed, high temperature, or low lubrication.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
