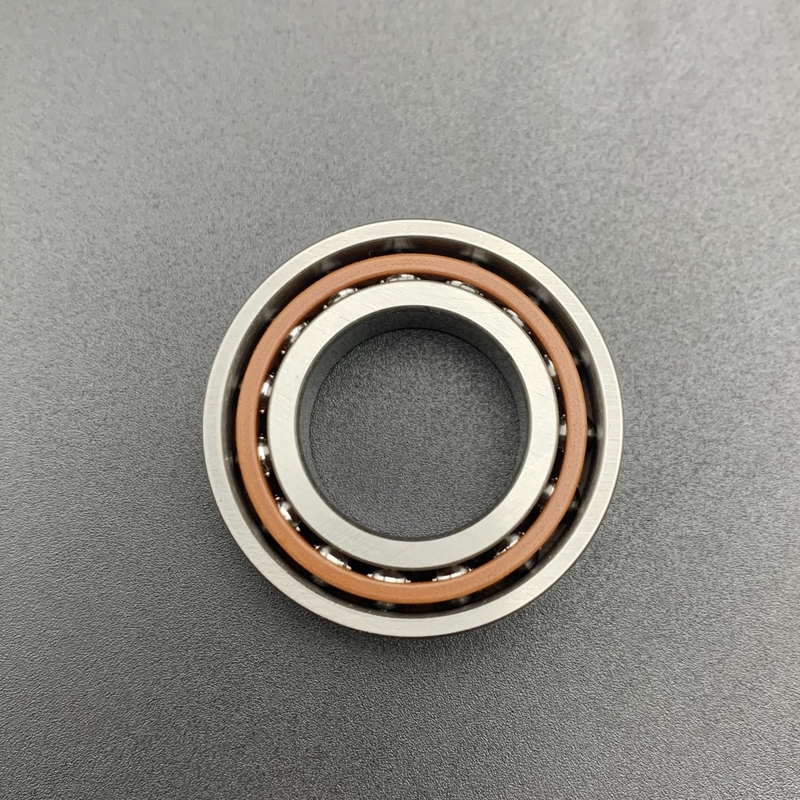

7206 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing
7206 CD/HCP4A 30*62*16 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls
Super-precision, high-capacity, single row angular contact ball bearing
The 7206 CD/HCP4A bearing,with a bore diameter of 30 mm, outside diameter of 62 mm, and width of 16 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.
| Part Number |
7206 CD/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
30 mm |
| Inner Bore Diameter Tolerance |
-0.005mm to 0 |
| Outer Bore Diameter (D) |
62 mm |
| Outer Bore Diameter Tolerance |
-0.007mm to 0 |
| Width (B) |
16 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 (ABEC-7) |
| Weight |
0.17 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
24200 N |
| Static Radial Load |
12000 N |
| Reference Speed For Grease (r/min) |
32000 rpm |
| Limiting Speed For Oil(r/min) |
45,000 rpm |
What's the Performance Features of 7206 CD/HCP4A Bearing?
The 7206 CD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.
What's the Applications of the 7206 CD/HCP4A Bearing?
The 7206 CD/HCP4A bearing,excels in high-speed and high-precision applications. It is widely used across industrial machinery (e.g., machine tool spindles, plastic processing equipment), fluid machinery (e.g., pumps, refrigeration systems), specialized equipment (e.g., energy and environmental protection devices), automation equipment (e.g., packaging machinery, textile machines), transportation equipment (e.g., construction machinery), and precision instrumentation (e.g., laboratory devices). These bearings ensure optimal performance and reliability in demanding environments, supporting critical operations from high-speed machining to low-noise medical instruments.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
