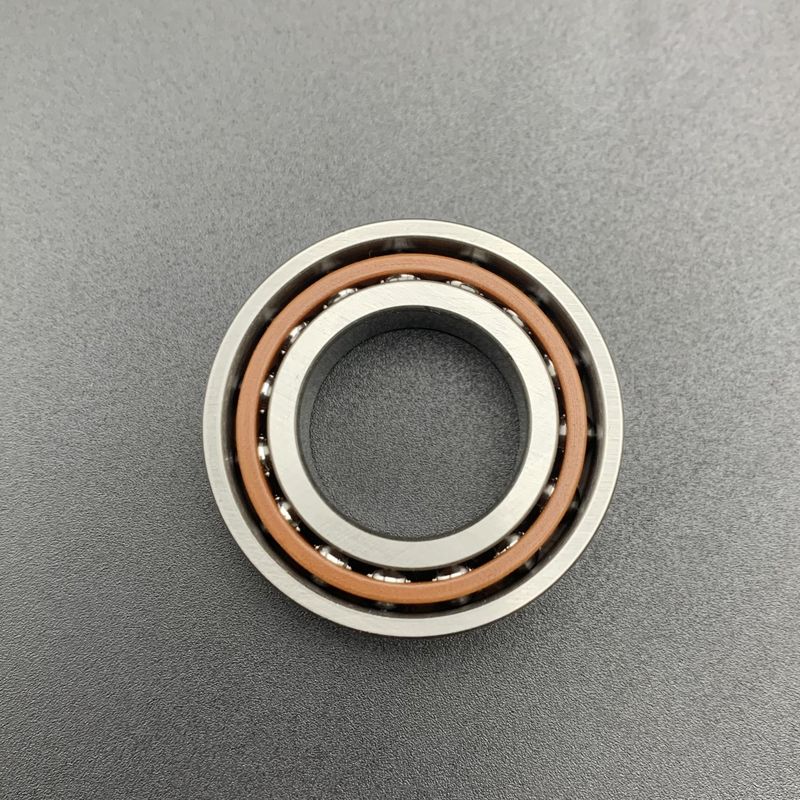

71906 CE/P4A Super Precision High Speed Angular Contact Ball Bearing 30x47x9 mm

Name: 71906 CE/P4A Super Precision High Speed Angular Contact Ball Bearing 30x47x9 mm
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71906 CE/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71906 CE/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                71906 CE/P4A precision ball bearing, single row angular contact bearing, 7906 super precision bearing


Part Number:	71906 CE/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7906CTRP4
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71906 CE/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7906CTRP4
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

71906 CE/P4A Super Precision High Speed Angular Contact Ball Bearing 30x47x9 mm

71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906

71906 CE/P4A 30×47×9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing
High Speed
Super-precision, high-speed E design, single row angular contact ball bearing

The 71906 CE/P4A bearing features a bore diameter of 30 mm, outside diameter of 47 mm, and width of 9 mm. With precise dimensions, high static load capacity, and P4A precision grade, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications

Part Number	71906 CE/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d): 30 mm Inner Bore Diameter Tolerance: -0.005mm to 0 Outer Bore Diameter (D): 47 mm Outer Bore Diameter Tolerance: -0.006mm to 0 Width (B): 9 mm Width Tolerance: -0.2mm to 0
Specifications	Contact Angle: 15° (25°, 40° Available) Material: Chrome Steel Cage Material: Phenolic Number of Rows: 1 Single Row Seal Type: Open Temperature Range: -30°C to 150°C Lubrication: Grease or Oil Tolerance Class: P4A better than P4 (ABEC-7) Weight: 0.050 kg Matched Arrangement: No Universal Matching Bearing: No Preload: Not applicable
Load and Speed	Dynamic Radial Load: 5590 N Static Radial Load: 3250 N Reference Speed For Grease: 41,000 rpm Limiting Speed For Oil: 63,000 rpm

Performance Features

Engineered for high-precision and high-performance applications
Very tight tolerances suitable for precise machinery
Ability to handle both radial and axial loads simultaneously
High-speed operation with stability
Low torque and friction for energy efficiency
Enhanced rigidity for accuracy under heavy loads
Durability with extended service life
Effective performance across a wide temperature range

Applications

The 71906 CE/P4A precision angular contact ball bearing is renowned for its high-speed capability, high load capacity, and precision performance. It is widely used in various fields including:

Medical devices such as surgical tools and dental drills requiring high precision and low friction
Industrial manufacturing equipment like plastic processing machines and crushers in harsh environments
Precision machinery and semiconductor applications such as EDM and laser cutting devices needing high rotational speed and wear resistance
Transportation and construction machinery including automotive transmissions and forklifts that demand high load-bearing capacity
Special environment applications like environmental protection equipment designed to withstand high temperatures and corrosion

This bearing excels across these diverse applications, ensuring optimal performance and reliability in demanding operational conditions.

Certification & Services

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support, Professional Service
Size	Standard, For custom sizes, please contact us
Factory Manufacturer	Yes

For samples and custom size inquiries, please contact our professional service team.
