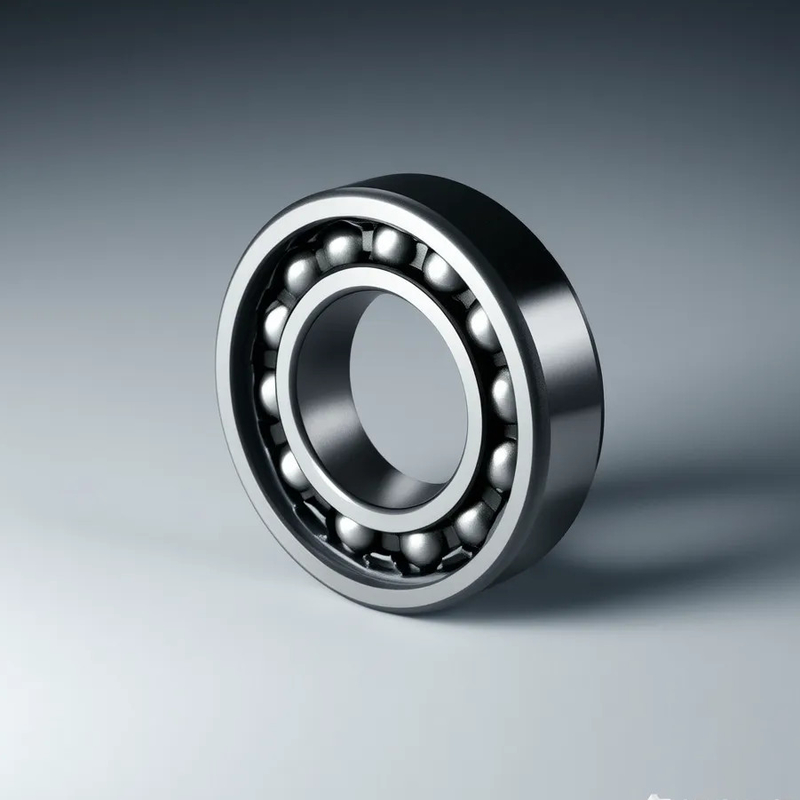

Name: 12mm Bore 61701 Radial Deep Groove Ball Bearing Single Row 6701
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 6701
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 6701

Payment & Shipping Terms

Minimum Order Quantity: 50000

Price: Please contact us,thanks

Packaging Details: plastic tub/middle box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                61701 radial deep groove ball bearing, 6701 radial deep groove ball bearing


Model Numbers::	6701	Bearing Seals:	Open ,2RS Or ZZ Available
Interchange:	FAG , NTN ,NSK .....	Clearance:	Standard

Model Numbers::	6701
Bearing Seals:	Open ,2RS Or ZZ Available
Interchange:	FAG , NTN ,NSK .....
Clearance:	Standard

12mm Bore 61701 Radial Deep Groove Ball Bearing Single Row 6701

61701 6701 Deep Groove Ball Bearings12mm X 18mm X 4mm Thin Section Robot Bearings

12mm Bore 61701 Radial Single Row Deep Groove Ball Bearings Thin Section Robot Bearing Single Ball Bearing Roller 6701

The 6701 deep groove ball bearing, with dimensions of 12 mm inner diameter × 18mm outer diameter × 4mm width, is renowned for its compact size, high-speed capability, and low noise characteristics.

Bearing Number			Boundary Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Reference(kg) Weight
			Inner Diameter	Outer Diameter	Width		Chamfer	Dynamic	Static	Grease	Oil	Reference(kg) Weight
			d	D	B	B1	r(min)	Cr	Cor	Non-contact		Wt ≈
61700	ZZ		10	15	3	4	0.1	800	390	34000	40000	0.00190
61701	ZZ	2RS	12	18	4	4	0.2	910	530	32000	38000	0.00310
61702	ZZ	2RS	15	21	4	4	0.2	850	490	28000	32000	0.00360
61703	ZZ	2RS	17	23	4	4	0.2	960	610	26000	30000	0.00400
61704	ZZ	2RS	20	27	4	4	0.2	1030	720	23000	28000	0.00590
61705	ZZ	2RS	25	32	4	4	0.2	1090	830	19000	23000	0.00700
61706	ZZ	2RS	30	37	4	4	0.2	1170	980	16000	19000	0.00830
61707	ZZ	2RS	35	44	5	5	0.3	1850	1630	14000	17000	0.01500
61708	ZZ	2RS	40	50	6	6	0.3	2519	2234	12000	15000	0.02300
61709	ZZ	2RS	45	55	6	6	0.3	2577	2401	9000	13000	0.02500
61710	ZZ	2RS	50	62	6	6	0.3	2666	2636	7000	10000	0.03400
61711	ZZ	2RS	55	68	7	7	0.3	2880	3070	5000	8000	0.05500

6701 bearings 12X18X4mm Specifications & Dimensions

Universal	6701
Type	Deep Groove Ball
Inner/Outer Ring/ Ball Material	Chrome Steel
Cage Material	Steel
CageType	Punching
Precision	P0,P6
Inner Dimension d(Ø)(mm)	12
Outer Dimension D(Ø)(mm)	18
Width B (or T)(mm)	4
Lubrication	Grease or oil
Load Direction	Radial
Specifications/Environment	Standard
Number of Raceway Ring Rows	Single Track
Size Standards	Metric Series

The 6701 deep groove ball bearing is widely used across various specialized fields due to its compact size and high precision. Application areas include:

Precision Instruments and Small Devices: Suitable for compact and lightweight precision instruments like office equipment, micro motors, and optical instruments due to its small size and open design, which allows for easy maintenance and lubrication, fitting applications that need regular adjustment or cleaning.
High-Speed Motors and Power Tools: The open-type bearing, lacking a seal, offers lower friction and superior heat dissipation, making it suitable for high-speed operations in power tools (such as drills, cutters) and industrial motors.
Machine Tool Auxiliary Components: In the field of machine tools, open bearings are often used to support auxiliary components like slides and guides, where high motion accuracy is required along with regular lubrication and maintenance. For example, such bearings may be used in the transmission systems of small CNC machines.
Food and Packaging Machinery: In food processing equipment, bearings must meet requirements for corrosion resistance and ease of cleaning. Open bearings can be adapted to such environments through customized lubrication solutions (e.g., food-grade grease) and are easy to disassemble for cleaning.
High-Temperature or Special Conditions: Certain high-temperature devices, such as drying machinery, may also utilize these bearings, possibly requiring special adaptations or materials to withstand extreme temperatures and conditions.
