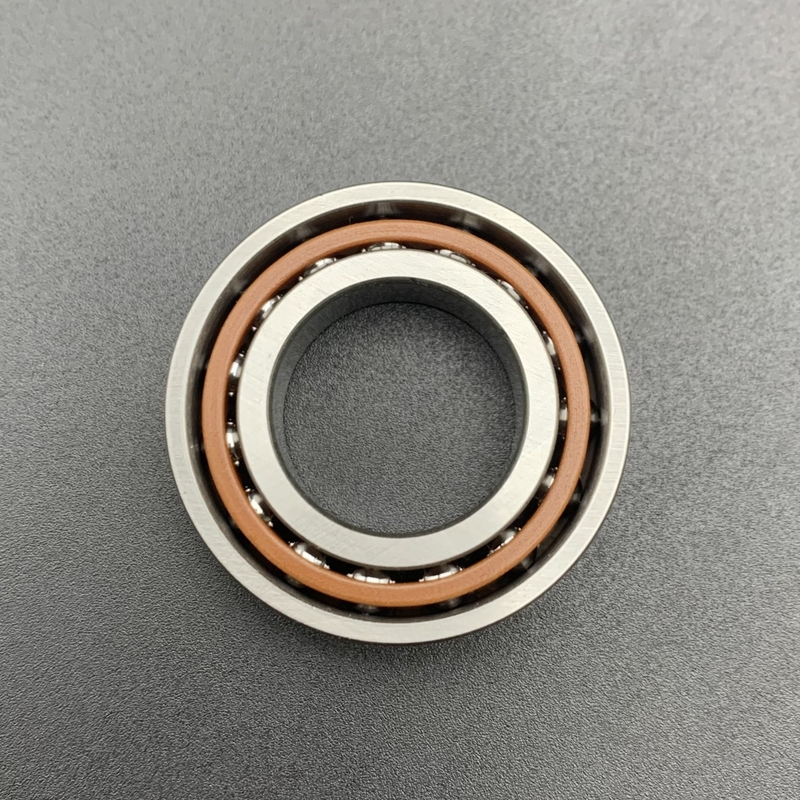

7007 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7007 2RZ

Name: 7007 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7007 2RZ
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7007 CD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7007 CD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	7007 CD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7007CTRP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7007 CD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7007CTRP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

7007 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7007 2RZ

7007 CD/P4A 35*62*14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity D design, single row angular contact ball bearing

The 7007 CD/P4A bearing,bore diameter is 35 mm, outside diameter is 62 mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	7007 CD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	35 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	62 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	14 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.15 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	15600 N
	Static Radial Load	9500 N
	Reference Speed For Grease (r/min)	24,000 rpm
	Limiting Speed For Oil(r/min)	36,000 rpm

7007 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7007 2RZ 0

7007 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7007 2RZ 1

What's the Performance Features of S7007 CD/HCP4A Bearing?

The S7007 CD/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the S7007 CD/HCP4A Bearing?

The S7007 CD/HCP4A is a high-precision angular contact ball bearing designed with a 15° contact angle, P4 tolerance class, and optimized preload, making it ideal for applications requiring high speed, accuracy, and reliability. It is extensively used in spindle supports for machine tools and precision machining equipment, industrial pumps and fluid handling systems, specialized machinery like aerospace testing equipment and semiconductor manufacturing devices, energy and heavy industry applications such as wind turbine gearboxes and steel rolling mills, and transportation equipment including high-speed rail traction motors and marine propulsion systems. Its advanced design ensures exceptional performance across diverse and demanding industrial sectors.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
