7208 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

Name: 7208 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7208 CD/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7208 CD/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	7208 CD/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7208 CD/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

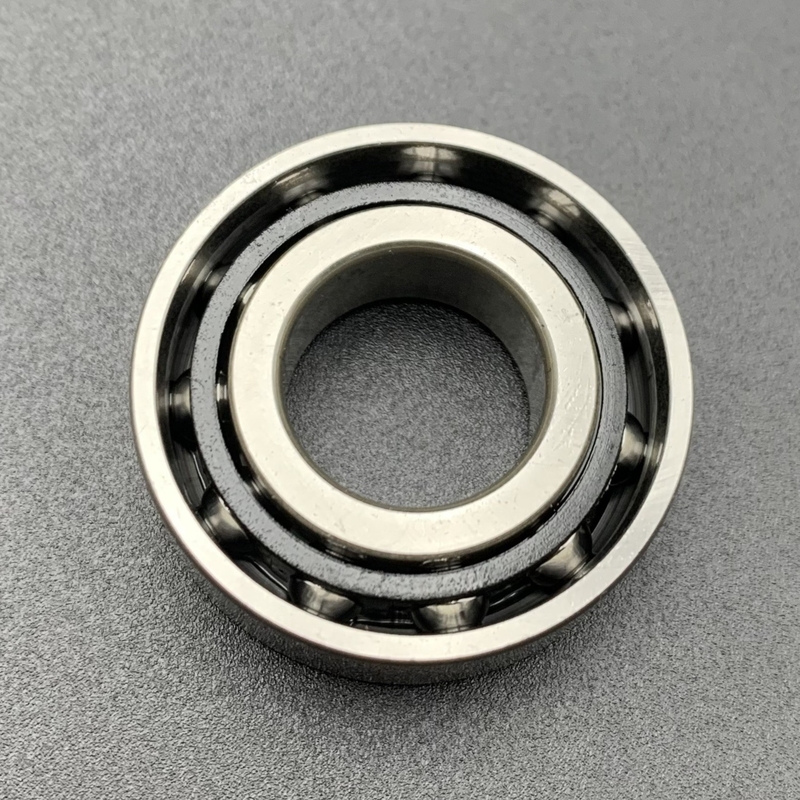

7208 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

7208 CD/HCP4A 40*80*18 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Bearings Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing

The 7208 CD/HCP4A bearing,with a bore diameter of 40 mm,outside diameter of 80 mm,and width of 18 mm,features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.

Part Number	7208 CD/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	40 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	80 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	18 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Oil or Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.33 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	33800 N
	Static Radial Load	24000 N
	Reference Speed For Grease (r/min)	22,000 rpm
	Limiting Speed For Oil(r/min)	34,000 rpm

7208 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 0

7208 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 1

What's the Performance Features of 7208 CD/HCP4A Bearing?

The 7208 CD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.

What's the Applications of the 7208 CD/HCP4A Bearing?

The 7208 CD/HCP4A bearing high-precision angular contact ball bearing, featuring a 15° contact angle and hybrid ceramic rollers, is designed for high-speed and high-precision applications requiring the handling of combined loads. It is widely used in machine tool spindles and high-precision transmission systems for stable and low-friction operation, supports heavy machinery and transportation equipment in harsh environments, meets sealing and corrosion resistance requirements in chemical and energy sectors, and provides high rigidity and precision in industrial robot joints and measuring instruments. This makes it an essential component across a range of industries, ensuring optimal performance and durability in demanding conditions.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
