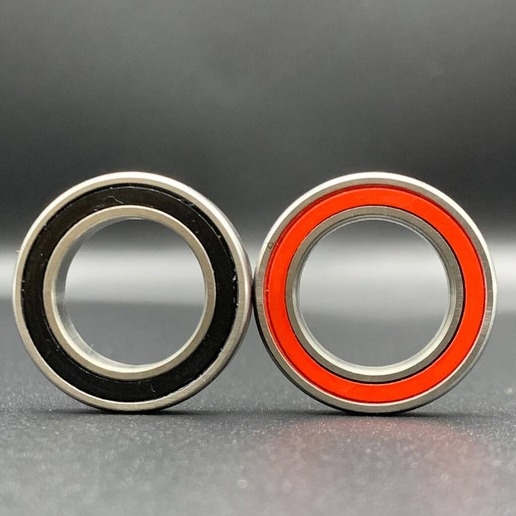

S71908 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ

S71908 ACD/HCP4A 40*62*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid  Ceramic Balls High Speed

Super-precision, high-capacity  design, single row angular contact ball bearing with seals

The S71908 ACD/HCP4A bearing,bore diameter is 40 mm, outside diameter is 62 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

What's the Performance Features of S71908 ACD/HCP4A Bearing?

The S71908 ACD/HCP4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71908 ACD/HCP4A Bearing?

S71908 ACD/HCP4A as a high-precision angular contact ball bearing, is primarily used in industrial settings that require precise operation, high-speed performance, and the ability to withstand heavy loads. Below are its typical applications

1. Industrial Equipment and Mechanical Manufacturing

• Machine Tools: Used in high-precision CNC machines and grinders for spindles and slides.

• Gearboxes: Suitable for three-ring, vertical/horizontal gearboxes, offering high load capacity and stability.

• Welding Equipment: Such as arc welders and gas shielded welders, designed for frequent start-stop cycles and high-speed operation.

2. Heavy Machinery and Engineering Equipment

• Agricultural Machinery: Including tractors and grain processing equipment, handling complex loads and vibrations.

• Smelting and Chemical Equipment: Like smelting plant machinery and evaporators, relying on heat resistance and sealing performance.

3. Precision Instruments and Specialized Equipment

• Medical Devices: Such as insulating glass production lines and medical CT scanners, requiring high cleanliness and low friction.

• Robotics: Currently in testing phase, potentially used in reducers or screw drive components.

• Semiconductors and Precision Machining: Like ceramic engraving machines, benefiting from the corrosion resistance of hybrid ceramic balls.

4. General Machinery and Auxiliary Equipment

• Packaging and Food Machinery: Multi-functional packaging machines and biscuit machinery, suitable for high-speed continuous operation.

• Energy and Environmental Protection Equipment: Such as wind turbine units and kitchen exhaust purification devices.
