71810 CD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7810

71810 CD/HCP4 50*65*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed

Super-precision, high-capacity, single row angular contact ball bearing

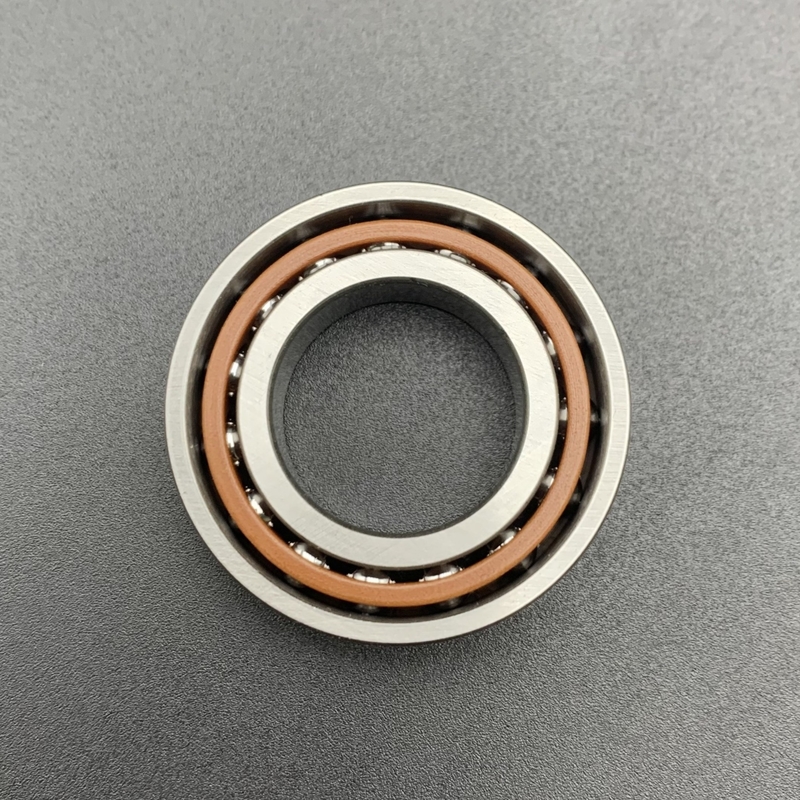

The 71810 CD/HCP4 bearing,bore diameter is 50 mm, outside diameter is 65 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

What's the Performance Features of 71810 CD/HCP4 Bearing?

The 71810 CD/HCP4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71810 CD/HCP4 Bearing?

The 71810 CD/HCP4 bearing , super-precision angular contact ball bearing series. With its high-speed capability, high rigidity, and low heat generation characteristics, it is primarily used in the following fields:

1. Precision Machinery Manufacturing

• Machine Tool Spindles: Suitable for high-speed machining centers, CNC lathes, and other equipment, enhancing rotational accuracy and stability .

• Multi-Axis Head Systems: Supports multi-tasking machining scenarios, ensuring rapid direction changes and high repeatability positioning accuracy.

2. Automation and Measurement Equipment

• Industrial Robotic Arms: Used in joint sections to meet high dynamic load and precision motion control requirements.

• Measuring Instruments: Such as coordinate measuring machines (CMMs) and optical inspection equipment, ensuring the accuracy of measurement data.

3. Special Industrial Applications

• Semiconductor Manufacturing Equipment: Provides low-vibration operation in dust-free environments during processes like wafer cutting and packaging.

• Laboratory Equipment: For example, centrifuges and high-precision rotary test platforms that require high-speed, long-duration operation .

4. Other High-Precision Scenarios

• Aerospace Testing Equipment: Simulates extreme operating conditions for bearing performance validation .

• Medical Devices: Such as dental drills and precision surgical instrument drive components.
