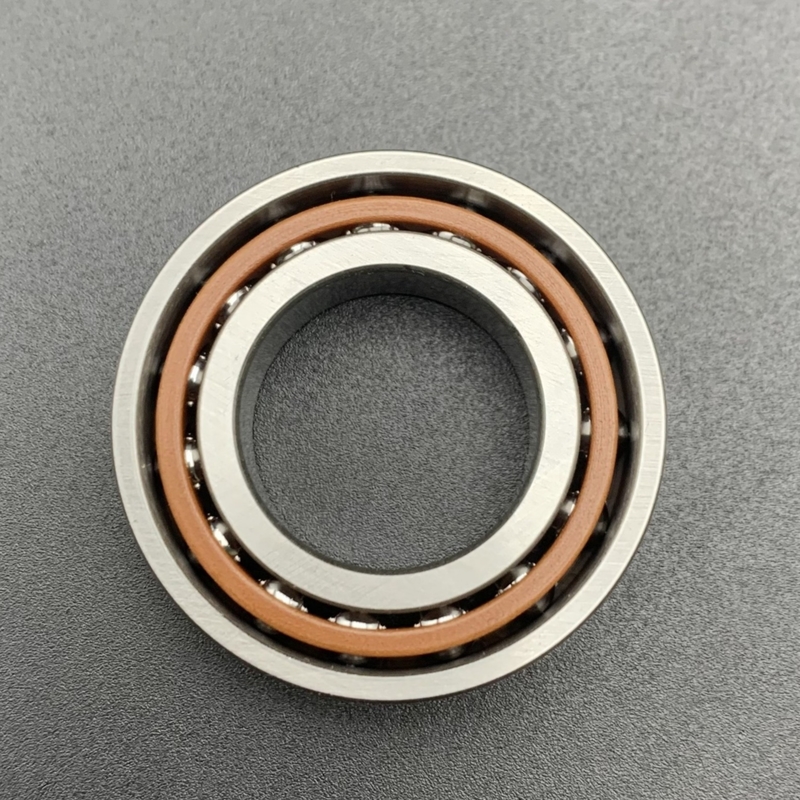

71910 ACD / P4A Super Precision Single Row Angular Contact Ball Bearing 7910

Name: 71910 ACD / P4A Super Precision Single Row Angular Contact Ball Bearing 7910
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71910 ACD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71910 ACD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                71910 ACD/P4A Ball Bearing, 71910 Super Precision Ball Bearing, 7910 Angular Contact Ball Bearing


Part Number:	71910 ACD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7910A5TRP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71910 ACD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7910A5TRP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

71910 ACD / P4A Super Precision Single Row Angular Contact Ball Bearing 7910

71910 ACD/P4A 50*72*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity design, single row angular contact ball bearing

The 71910 ACD/P4A bearing,bore diameter is 50 mm, outside diameter is 72 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71910 ACD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	50 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	72 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	12 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or oil
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.13 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	12700 N
	Static Radial Load	9800 N
	Reference Speed For Grease (r/min)	16,000 rpm
	Limiting Speed For Oil(r/min)	26,000 rpm

71910 ACD / P4A Super Precision Single Row Angular Contact Ball Bearing 7910 0

71910 ACD / P4A Super Precision Single Row Angular Contact Ball Bearing 7910 1

What's the Performance Features of 71910 CD/P4A Bearing?

The 71910 CD/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71910 CD/P4A Bearing?

The 71910 ACD/P4A bearing is a precision angular contact ball bearing , widely used across various industries due to its high precision, durability, and performance. Below are its key application areas:

1. Industrial Machines

Used in plastic machinery, pharmaceutical equipment, welding tools, and factory equipment.
Helps machines run smoothly and accurately, even under heavy use.

2. Everyday Machines

Found in clothing machines, mixers, cleaning equipment, and factory tools.
Reduces friction and keeps machines working quietly and efficiently.

3. Manufacturing & Heavy Industry

Used in cutting machines, welding machines, metal加工 tools, and heavy machinery.
Ensures precise and reliable performance in tough working conditions.

4. Medical & Packaging

Used in hospital equipment, food packaging machines, and drug packaging tools.
Provides safe and stable operation for critical tasks.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes

If you need more detailed information , feel free to ask!
