7010 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7010 ACD/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price
Highlight:
Part Number:
7010 ACD/HCP4A Angular Contact Ball Bearing
Structure:
Angular Contact
Seals Type:
Open (2RZ Available)
Ring Type:
One-piece Inner And Outer Rings
Lubrication:
Grease,Oil
Replaceable With:
SKF, NSK 7010A5SN24TRP4
Coating:
Without
Sealing:
Without
Design:
High-capacity D
Contact Type:
Normal Contact (two-point Contact)
Part Number:
7010 ACD/HCP4A Angular Contact Ball Bearing
Structure:
Angular Contact
Seals Type:
Open (2RZ Available)
Ring Type:
One-piece Inner And Outer Rings
Lubrication:
Grease,Oil
Replaceable With:
SKF, NSK 7010A5SN24TRP4
Coating:
Without
Sealing:
Without
Design:
High-capacity D
Contact Type:
Normal Contact (two-point Contact)
7010 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

7010 ACD/HCP4A 50*80*16 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed

Super-precision, high-capacity D design, single row angular contact ball bearing



The 7010 ACD/HCP4A bearing,bore diameter is 50 mm, outside diameter is 80 mm,width is 16 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.



Part Number 7010 ACD/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d) 50 mm
Inner Bore Diameter Tolerance -0.006mm to 0
Outer Bore Diameter (D) 80 mm
Outer Bore Diameter Tolerance -0.007mm to 0
Width (B)  16 mm
Width Tolerance -0.2mm to 0
Specifications Contact Angle 25° (15°,40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4A better than P4
Weight 0.22 kg
Matched Arrangement No
Universal Matching Bearing No
Preload Not applicable
Load and Speed Dynamic Radial Load 28100 N
Static Radial Load 23200 N
Reference Speed For Grease (r/min) 18,000 rpm
Limiting Speed For Oil(r/min) 28,000 rpm

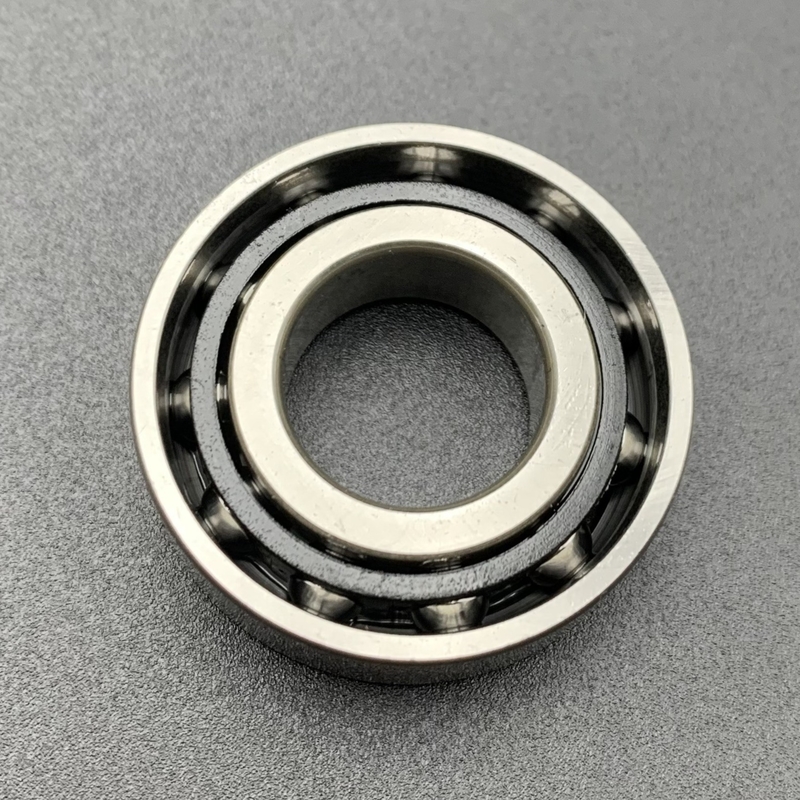

7010 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 0



7010 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 1



What's the Performance Features of 7010 ACD/HCP4A Bearing?



The 7010 ACD/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.



What's the Applications of the 7010 ACD/HCP4A Bearing?



The 7010 ACD/HCP4A is not a cross roller bearing but an angular contact ball bearing. This type of bearing is widely used across various industries and applications:


1. Industrial Manufacturing

  • Applications: Machine tool spindles, vertical lathes, cold heading machines, compression molding machines, and machine tool ball screws.
  • Role: In machine tool ball screws, the bearing ensures precise transmission of motion and power, enabling high-precision machining operations.

2. Rubber and Plastic Industry

  • Applications: Rubber pelletizers, plastic machinery components, rubber cutting machines, rubber molding machines, plastic mixing machines, plastic calendering machines, and plastic welding machines.
  • Role: These machines require bearings with high stability and precision during operation, which the 7010 ACD/HCP4A can reliably provide.

3. Food and Pharmaceutical Industry

  • Applications: Pharmaceutical equipment, food sterilization equipment, and food and drug packaging machines.
  • Role: In these hygiene-critical applications, the bearing operates reliably while meeting stringent cleanliness and performance requirements.

4. Other Applications

The 7010 ACD/HCP4A is also used in a variety of other equipment and scenarios, including:

  • Burners, textile machinery components, textile testing instruments, drilling and mining equipment, crushing machinery, steel rolling equipment, manual pumps, wastewater treatment equipment, aluminum welding machines, mesh belt furnaces, back-seaming machines, test sieves, thread rolling machines, dry cooling towers, and float glass production lines.
  •



CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support,Professional Service
Size Standard,For custom sizes ,please contact us
Factory Manufacturer Yes



If you need more detailed information , feel free to ask!
