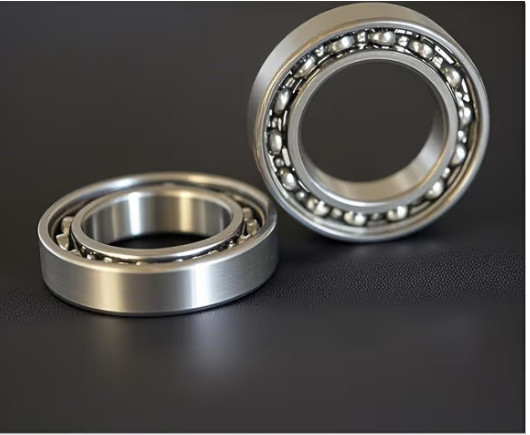

Name: 17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 6703
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 6703

Payment & Shipping Terms

Minimum Order Quantity: 50000

Price: Please contact us,thanks

Packaging Details: plastic tub/middle box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                6703zz ball bearing, 6703zz bearing, 6703zz bearings


Model Numbers::	6703 ,61703 Deep Groove Ball Bearings	Bearing Seals:	Open,ZZ Or 2RS Available
Interchange:	FAG , NTN	Clearance:	Standard

Model Numbers::	6703 ,61703 Deep Groove Ball Bearings
Bearing Seals:	Open,ZZ Or 2RS Available
Interchange:	FAG , NTN
Clearance:	Standard

17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz

61703 Deep Groove Ball Bearings17mm X 23mm X 4mm Thin Section Robot Bearings 6703

The 61703 deep groove ball bearing, with dimensions of 17 mm inner diameter × 23mm outer diameter × 4mm width, is renowned for its compact size, high-speed capability, and low noise characteristics.

The 61703 is a small deep groove ball bearing, designed for lightweight applications with low to medium loads and speeds. It is known for its compact size, low noise, and smooth operation.

Common Uses:

Small Motors: Cooling fans, toy motors, and low-power DC motors.
Home Appliances: Washing machine pumps, blenders, and small kitchen appliances.
Automotive Accessories: Window regulators, seat adjusters, and dashboard components.
Office Equipment: Printers, scanners, and paper feeders.
Light Machinery: Conveyor rollers, packaging machines, and DIY power tools.

6703 Ball Bearings 17X23X4mm Specifications & Dimensions

Universal	6703
Type	Deep Groove Ball
Inner/Outer Ring/ Ball Material	Chrome Steel
Cage Material	Steel
CageType	Punching
Precision	P0,P6
Inner Dimension d(Ø)(mm)	17
Outer Dimension D(Ø)(mm)	23
Width B (or T)(mm)	4
Lubrication	Grease,oil
Load Direction	Radial
Specifications/Environment	Standard
Number of Raceway Ring Rows	Single Track
Size Standards	Metric Series

17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz 0

Bearing Number			Boundary Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Reference(kg) Weight
			Inner Diameter	Outer Diameter	Width		Chamfer	Dynamic	Static	Grease	Oil	Reference(kg) Weight
			d	D	B	B1	r(min)	Cr	Cor	Non-contact		Wt ≈
617/3	ZZ		3	6	2	2.5	0.1	242	94	60000	71000	0.00020
617/4	ZZ		4	7	2	2.5	0.1	222	88	54000	63000	0.00028
617/5	ZZ		5	8	2	2.5	0.1	217	91	49000	57000	0.00032
617/6	ZZ		6	10	2.5	3	0.1	465	196	43000	51000	0.00065
617/7	ZZ		7	11	2.5	3	0.1	555	269	40000	47000	0.00067
617/8	ZZ		8	12	2.5	3.5	0.1	515	252	38000	45000	0.00075
617/9	ZZ		9	14	3	4.5	0.1	920	465	36000	42000	0.00140
61700	ZZ		10	15	3	4	0.1	800	390	34000	40000	0.00190
61701	ZZ	2RS	12	18	4	4	0.2	910	530	32000	38000	0.00310
61702	ZZ	2RS	15	21	4	4	0.2	850	490	28000	32000	0.00360
61703	ZZ	2RS	17	23	4	4	0.2	960	610	26000	30000	0.00400
61704	ZZ	2RS	20	27	4	4	0.2	1030	720	23000	28000	0.00590
61705	ZZ	2RS	25	32	4	4	0.2	1090	830	19000	23000	0.00700
61706	ZZ	2RS	30	37	4	4	0.2	1170	980	16000	19000	0.00830
61707	ZZ	2RS	35	44	5	5	0.3	1850	1630	14000	17000	0.01500
61708	ZZ	2RS	40	50	6	6	0.3	2519	2234	12000	15000	0.02300
61709	ZZ	2RS	45	55	6	6	0.3	2577	2401	9000	13000	0.02500
61710	ZZ	2RS	50	62	6	6	0.3	2666	2636	7000	10000	0.03400
61711	ZZ	2RS	55	68	7	7	0.3	2880	3070	5000	8000	0.05500
