71802 AC P4A GA Super Precision Angular Contact Ball Bearing 15X24X10 mm 7802

Name: 71802 AC P4A GA Super Precision Angular Contact Ball Bearing 15X24X10 mm 7802
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71802 AC P4A GA
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71802 AC P4A GA

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 50000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	71802 AC P4A GA Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71802 AC P4A GA Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

71802 AC P4A GA Super Precision Angular Contact Ball Bearing 15X24X10 mm 7802

71802 AC PA GA 15X24X10 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Matched set of two super-precision, high-capacity , single row angular contact ball bearings

The 71802 AC P4A GA bearing,bore diameter is 15 mm, outside diameter is 24 mm,width is 10 mm,featuring precise dimensions, high static load capacity, P4 precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71802 AC P4A GA
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	15 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	24 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	10 mm (2*5mm)
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	2 (2* Single Row)
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Number of bearings in matched set	2
	Tolerance Class	P4 (ABEC-7)
	Weight	0.014 kg
	Matched Arrangement	Universal Matching
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	EL/Extra Light/Class A
Load and Speed	Dynamic Radial Load	3510 N
	Static Radial Load	2800 N
	Reference Speed For Grease (r/min)	53,000 rpm
	Limiting Speed For Oil(r/min)	80,000 rpm

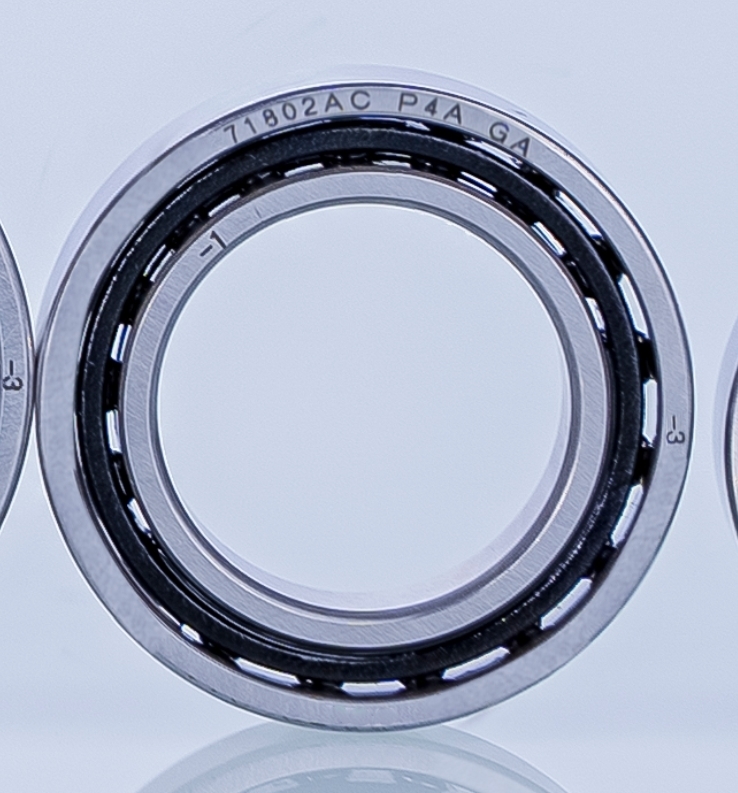

71802 AC P4A GA Super Precision Angular Contact Ball Bearing 15X24X10 mm 7802 0

71802 AC P4A GA Super Precision Angular Contact Ball Bearing 15X24X10 mm 7802 1

What's the Performance Features of 71802 AC P4A GA Bearing?

The 71802 AC P4A GA bearing is a super - precision single - row angular contact ball bearing. It has a contact angle of 25° and can bear radial and axial loads simultaneously, with the axial load acting in only one direction. This bearing features high running accuracy and load - carrying capacity, and can operate at relatively high speeds with good stiffness. It is universally matchable, allowing for arbitrary installation, which can evenly distribute the load between two bearings within the preset pre - load range without the need for gaskets. With a P4A tolerance grade, it has strict dimensional and running accuracy requirements

What's the Applications of the 71802 AC P4A GA Bearing?

The 71802 AC P4A GA bearing is suitable for high - precision, high - speed and load - bearing scenarios. Its applications include:

Machine Tool Spindles: For lathes, grinders, etc., ensuring machining accuracy.
Robotic Joints: Used in robotic arms to guarantee movement precision and stability.
Precision Measuring Instruments: Such as coordinate measuring machines, reducing measurement errors.
Turbochargers: Meeting high - speed and high - temperature working requirements.
High - speed Machining Equipment: Applied in mills and machining centers for reliable high - speed cutting.

We produce high-precision bearings up to P2,P4A and P4 accuracy levels, holding over 60% market share in China’s industrial automation linear modules and machine tool sectors.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
