7005AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 25X47X12 mm

Name: 7005AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 25X47X12 mm
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7005AC P4A GA
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7005AC P4A GA

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 50000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	7005AC P4A GA Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Oil Or Grease	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7005AC P4A GA Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Oil Or Grease
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

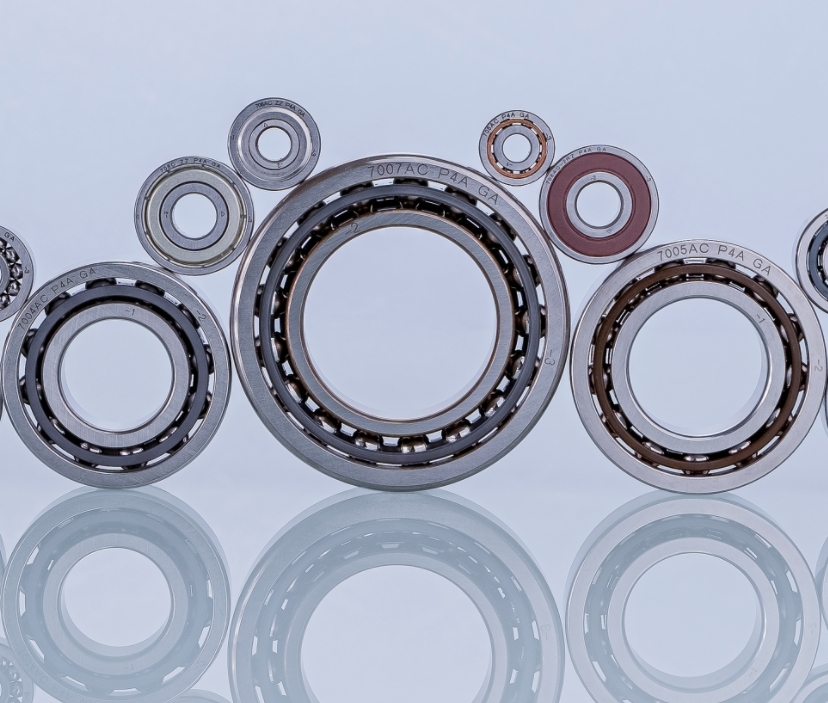

7005AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 25X47X12 mm

7005AC P4A GA 25*47*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity, universally matchable single row angular contact ball bearing

The 7005AC 4A GA bearing,bore diameter is 25 mm, outside diameter is 47 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	7005AC P4A GA
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	25 mm
	Inner Bore Diameter Tolerance	-0.005mm to 0
	Outer Bore Diameter (D)	47 mm
	Outer Bore Diameter Tolerance	-0.006mm to 0
	Width (B)	12 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease,oil
	Tolerance Class	P4A better than P4
	Weight	0.075 kg
	Matched Arrangement	No
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	EL/Extra Light/Class A
Load and Speed	Dynamic Radial Load	7930 N
	Static Radial Load	3900 N
	Reference Speed For Grease (r/min)	42,000 rpm
	Limiting Speed For Oil(r/min)	63,000 rpm

7005AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 25X47X12 mm 0

7005AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 25X47X12 mm 1

What's the Performance Features of 7005AC P4A GA Bearing?

The 7005 AC P4A GA bearing, featuring P4A-grade high precision, an angular contact configuration, and enhanced geometric accuracy , efficiently accommodates both radial and axial loads. It exhibits low vibration and robust stability during high-speed operation, with premium-grade materials ensuring superior durability, thus rendering it an optimal choice for high-precision critical domains such as machine tool spindles, industrial automation systems, aerospace components, and medical devices.

What's the Applications of the 7005AC P4A GA Bearing?

The 7005 AC P4A GA bearing,is a versatile and reliable component widely used across numerous industrial sectors,such as:

Machine tool spindles
Industrial automation systems (e.g., robotic joints, servo mechanisms)
Aerospace components (e.g., engine accessory drives, guidance systems)
Medical equipment (e.g., imaging systems, surgical robots)
Semiconductor manufacturing machinery (e.g., wafer handlers, lithography tools)

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
