Custom Crossed Roller Bearing for Robotic Joints & Precision Actuators

Precision Bearing Solutions for Compact Robotic Mechanisms

Model: BN-CRB074005

Beining Technology develops and manufactures customized crossed roller bearings for robotic joints, compact actuators, automation equipment and other precision rotary mechanisms.

The BN-CRB074005 is a customized crossed roller bearing designed for applications where compact installation, rotational accuracy, rigidity and controlled running characteristics are important.

Its customized flange-type configuration allows the bearing to be integrated into compact mechanical assemblies while supporting the requirements of precision robotic mechanisms.

The bearing can be customized according to application requirements, mechanical drawings and installation conditions.

[Request a Quote]
[Send Your Drawing]

Product Overview

Customized Crossed Roller Bearing

Crossed roller bearings are designed with cylindrical rollers arranged at alternating right angles between the inner and outer rings. This structure allows the bearing to support loads from multiple directions within a compact configuration.

The BN-CRB074005 adopts a customized configuration for compact rotary mechanisms and precision applications.

It can be considered for:

• Robotic joints
• Robotic actuators
• Robot arms
• Humanoid robot mechanisms
• Industrial automation
• Precision rotary mechanisms
• Semiconductor equipment
• Inspection equipment
• Compact positioning systems
• Customized machinery

For applications with limited installation space and demanding rotational requirements, a customized crossed roller bearing can provide an efficient solution.

Key Features

Compact Bearing Design

The customized flange configuration allows the bearing to be integrated into space-constrained mechanical assemblies.

This makes the bearing suitable for compact robotic joints and actuator mechanisms where available installation space is limited.

Multi-Directional Load Support

The crossed roller bearing structure is suitable for applications where radial, axial and moment loads may occur simultaneously.

This characteristic makes crossed roller bearings particularly useful in precision rotary mechanisms.

Precision Manufacturing

The BN-CRB074005 is designed for precision applications requiring controlled dimensional accuracy, bearing clearance and rotational performance.

Beining Technology provides precision bearing manufacturing and inspection capabilities for customized applications.

Customized Configuration

Different robotic mechanisms can have different requirements for dimensions, mounting interfaces, clearance, sealing and lubrication.

Beining Technology can evaluate customized bearing configurations according to application requirements and engineering drawings.

Suitable for Robotic Applications

Crossed roller bearings can be used in robotic joints, compact actuators and other rotary mechanisms where compact design, rigidity and rotational accuracy are important.

Technical Specifications

The supplied product specification identifies P4/P2 precision capability, GCr15 bearing material, controlled radial clearance, friction torque requirements and IP64 protection for the specified product configuration. Detailed engineering specifications should be confirmed according to the final application and drawing.

Detailed dimensions, load ratings, tolerances and engineering drawings are available upon request.

Precision Crossed Roller Bearing for Robotic Applications

The compact structure of the BN-CRB074005 makes it suitable for precision rotary applications where bearing size, mounting configuration and rotational performance are important.

For customized robotic applications, the bearing configuration can be evaluated according to the available installation space and mechanical requirements.

Applications

Robotic Joints

Crossed roller bearings can provide a compact bearing solution for rotary robotic joints where multi-directional loads and rotational accuracy are important.

Robotic Actuators

The customized bearing configuration can be integrated into compact rotary actuator systems according to installation and performance requirements.

Robot Arms

For articulated mechanisms, bearing stiffness and controlled rotational movement are important factors in the overall mechanical design.

Humanoid Robot Mechanisms

Compact precision bearings can be considered for humanoid robot joint mechanisms where installation space, rotational accuracy and load support are important.

Industrial Automation

Crossed roller bearings are also suitable for precision rotary mechanisms used in automated equipment and machinery.

Precision Equipment

Applications may include positioning systems, inspection equipment, semiconductor equipment and other precision mechanical systems.

Customized Crossed Roller Bearings for Robotic Applications

Every robotic joint and actuator can have different requirements for installation space, load, stiffness, rotational accuracy and mounting interface.

For this reason, a standard bearing is not always the most suitable solution.

Beining Technology provides customized crossed roller bearing solutions based on application requirements and mechanical drawings.

We can evaluate bearing solutions according to:

• Bearing dimensions
• Installation space
• Radial load
• Axial load
• Moment load
• Rotational speed
• Bearing clearance
• Runout requirements
• Mounting-hole configuration
• Sealing requirements
• Lubrication requirements
• Precision requirements
• Operating environment

Customers can provide a 2D drawing, 3D CAD model, existing bearing specification or basic application requirements for technical evaluation.

Our engineering team can then evaluate the application and recommend a suitable bearing configuration.

Need a customized crossed roller bearing for a robotic joint? Send us your requirements for technical evaluation.

Precision Manufacturing & Quality Control

Beining Technology specializes in the development and manufacturing of precision bearings for robotics, automation and other high-precision mechanical applications.

Our precision bearing capabilities include:

• Precision bearing manufacturing
• CMM 3D inspection
• Roundness measurement
• Profile measurement
• Friction torque inspection
• Runout inspection
• FAI support
• PPAP support
• P4 / P2 precision capability

The supplied product information identifies CMM inspection, roundness/profile measurement and 100% friction torque and runout inspection as part of the relevant quality-control capabilities.

Beining Technology also supports customized bearing development from prototype evaluation through production.

Customized Bearing Development

For new robotic mechanisms, the bearing is often an important part of the overall mechanical design.

Instead of selecting a standard bearing first and adapting the mechanism around it, customers can provide the application requirements and allow the bearing configuration to be evaluated around the actual mechanical design.

Beining Technology can support customized bearing development based on:

Application requirements → Engineering evaluation → Customized bearing design → Prototype → Testing → Production

The supplied product information indicates rapid prototype capability for the relevant robotics bearing program.

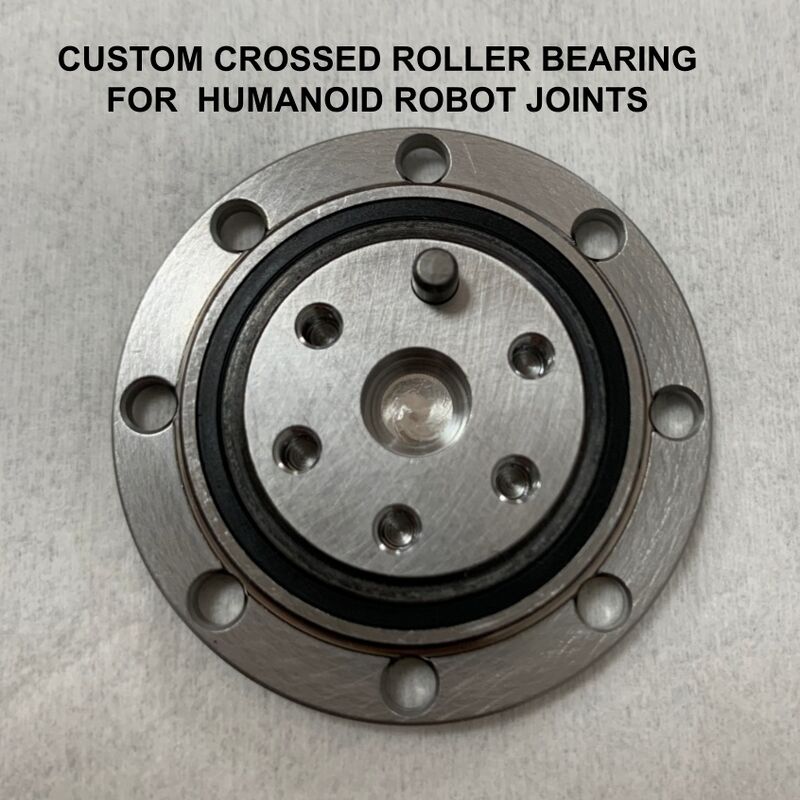

Product Photos

About Beining Technology

Beining Technology (Zhejiang) Co., Ltd. specializes in the development and manufacturing of precision bearings for robotics, automation and other high-precision mechanical applications.

Our product range includes:

• Crossed roller bearings
• Four-point contact bearings
• Angular contact bearings
• Thin-section deep groove ball bearings
• Customized precision bearings

Beining Technology operates a modern bearing manufacturing facility with automated production capabilities and supports customized bearing development, precision manufacturing and volume production.

Our supplied product information also identifies dedicated robotics bearing production capabilities, P4/P2 precision capability and multiple precision inspection processes.

Learn more about Beining Technology:
Beining Technology

Related Robotics Bearing Resources

If you are developing robotic joints, actuators or other precision rotary mechanisms, you may also be interested in:

How to Select Bearings for Compact Robot Actuators

Read the article

Crossed Roller vs Four-Point Contact Bearings for Robot Joints

Read the article

Customized Bearings for Humanoid Robot Actuators

Read the article

Bearing Selection for High-Load Robot Joints

Read the article

Frequently Asked Questions

What is a crossed roller bearing?

A crossed roller bearing uses cylindrical rollers arranged at alternating right angles between the inner and outer rings. This structure provides multi-directional load support and high rigidity within a compact bearing configuration.

What are crossed roller bearings used for?

Crossed roller bearings are commonly used in robotic joints, precision actuators, industrial automation, positioning equipment, semiconductor equipment and other precision rotary mechanisms.

Are crossed roller bearings suitable for robotic joints?

Yes. Crossed roller bearings can be suitable for robotic joint and actuator applications where compact installation, rigidity, rotational accuracy and multi-directional load support are important.

Can BN-CRB074005 be customized?

Yes. BN-CRB074005 is a customized bearing configuration. Bearing dimensions, mounting interfaces, clearance, sealing and other requirements can be evaluated according to the application.

What precision grades are available?

P4 and P2 precision capability is available for applicable precision bearing requirements. The final precision grade should be confirmed according to the application and engineering specification.

Can I request a customized bearing according to my drawing?

Yes. Customers can provide a 2D drawing, 3D CAD model or basic application requirements for technical evaluation and customized bearing development.

Can I request detailed specifications for BN-CRB074005?

Yes. Detailed dimensional drawings, engineering specifications and application data can be provided after the application requirements are reviewed.

Looking for a Customized Robotic Bearing?

If you are developing a robotic joint, actuator or compact rotary mechanism, send us your requirements.

Our engineering team can evaluate:

• Installation space
• Radial load
• Axial load
• Moment load
• Rotational speed
• Bearing clearance
• Runout
• Lubrication
• Operating environment

Send us your drawing or application requirements for a customized bearing evaluation.

Contact Beining Technology

Contact Us

Visit Beining Technology
