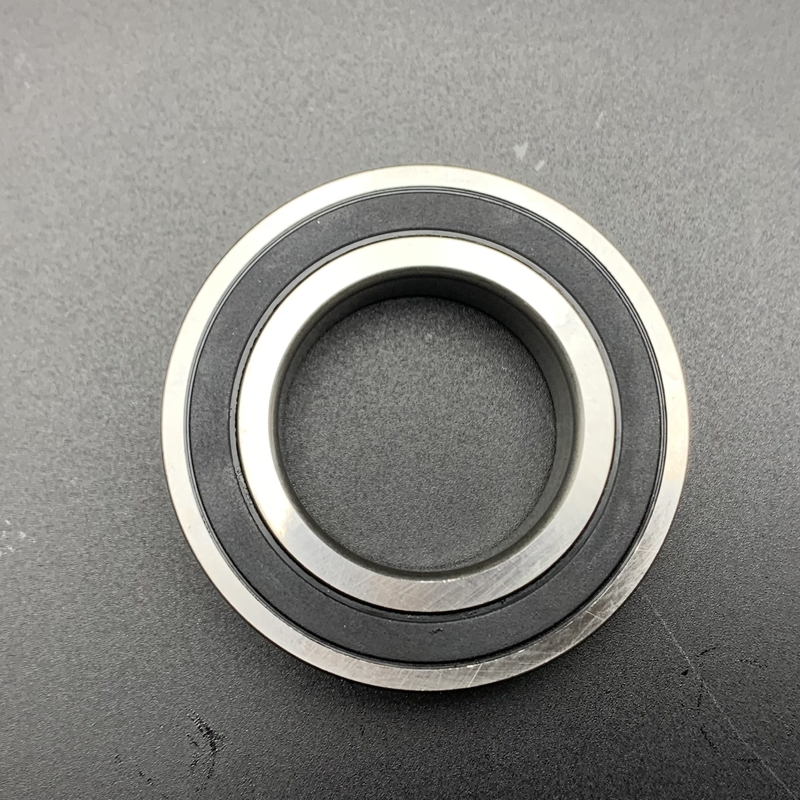

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm

Name: 7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7007C-2RZ Precision Angular Contact Ball Bearing
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OEM

Certification: IATF16949:2016

Model Number: 7007C-2RZ Precision Angular Contact Ball Bearing

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Please contact us

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Supply Ability: 100000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Precision Angular Contact Ball Bearing, Angular Contact Ball Bearing Single Row, Single Row Angular Contact Bearing


Part Number:	7007C-2RZ P4A Precision Angular Contact Ball Bearing	Tolerance Class:	P4A
Seals Type:	Sealed 2RZ	Contact Angle:	15°
Lubrication:	Grease	Preload:	Extra Light / Class A
Matched Arrangement:	2 Bearings	Type:	Angular Contact Ball Bearing
Interchangeable With:	SKF	Seals Color:	Black

Part Number:	7007C-2RZ P4A Precision Angular Contact Ball Bearing
Tolerance Class:	P4A
Seals Type:	Sealed 2RZ
Contact Angle:	15°
Lubrication:	Grease
Preload:	Extra Light / Class A
Matched Arrangement:	2 Bearings
Type:	Angular Contact Ball Bearing
Interchangeable With:	SKF
Seals Color:	Black

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm

Design Features of the 7007C-2RZ P4A Super Precision Angular Contact Bearing

The 7007C-2RZ P4A Super Precision Angular Contact Bearing exemplifies advanced materials science, mechanical engineering, and precision manufacturing. Designed for high-speed spindles, precision instruments, and applications where accuracy and speed are paramount, this bearing offers exceptional performance.

Bearing Number	Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Weight(Kg)
	Inner Diameter	Outer Diameter	Width	Chamfer		Dynamic	Static	Grease	Oil	Weight(Kg)
	d	D	B	rsmin	r1smin	Cr	Cor	Non-contact	Non-contact	reference
7007C-2RZ	35	62	14	1	0.6	19500	14200	8500	/	0.150

Ring Material	Steel
Roller Material	Steel,Ceramic available
Cage Material	Bakelite Phenolic
Contact Angle	15°,25° & 40° available
Lubrication	Required
Matched Arrangement	Available
Preload	Available
Number Of Bearings In Matched Set	2
Universal Matching Bearing	Yes,DB,DF,DT(Back to Back,Face to Face,Tandem)
Temperature Range	-30°C ~ +110°C
ABEC Rating	P4 (ABEC7)P5,P2 available
CERTIFICATE	RoHS, IATF16949:2016
For Load Direction	Angular Contact
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm 0

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 35x62x14mm 1

7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Key Design Features:Dimensions: Bore Diameter: 35 mm

Outer Diameter: 62 mm

Width: 14 mm

Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.

Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy. High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.

Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.

Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision. Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.

This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
