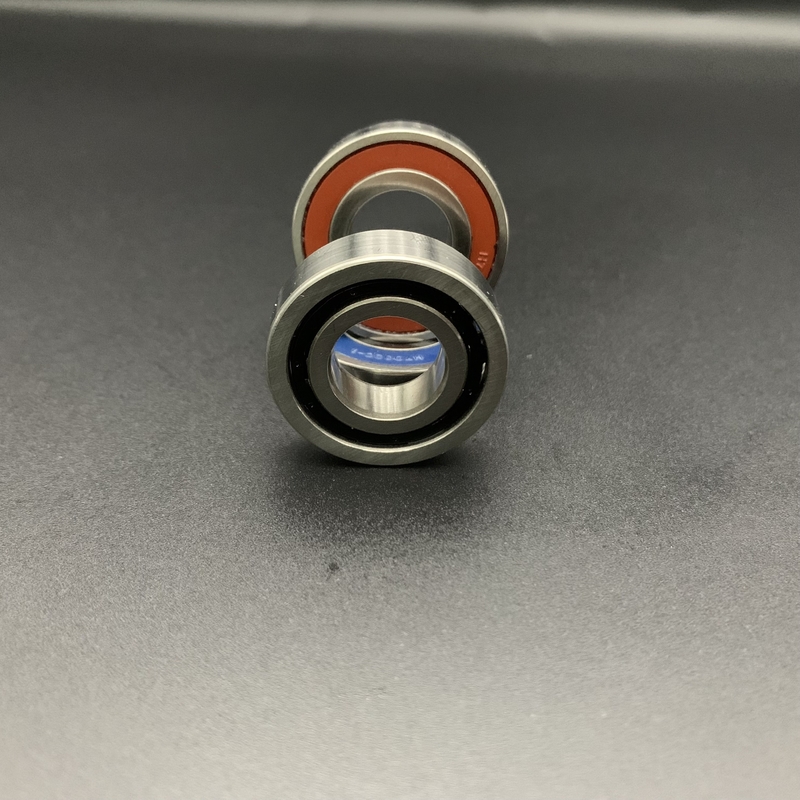

7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines

Name: 7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7003C-2RZ P4 Precision Angular Contact Ball Bearing
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OEM

Certification: IATF16949:2016

Model Number: 7003C-2RZ P4 Precision Angular Contact Ball Bearing

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Please contact us

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                7003C-2RZ P4 Precision Angular Contact Ball Bearing, Angular Contact Ball Bearing 17x35x10, 17x35x10 Bearing


Part Number:	7003C-2RZ P4 Precision Angular Contact Ball Bearing	Tolerance:	P4 (ABEC-7)
Seals Color:	Black And Red	Contact Angle:	C/15°
Lubrication:	Grease	Preload:	Light Preload
Interchangeable With:	SKF	Sealed Type:	2RZ

Part Number:	7003C-2RZ P4 Precision Angular Contact Ball Bearing
Tolerance:	P4 (ABEC-7)
Seals Color:	Black And Red
Contact Angle:	C/15°
Lubrication:	Grease
Preload:	Light Preload
Interchangeable With:	SKF
Sealed Type:	2RZ

7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines

7003C-2RZ P4 Precision Angular Contact Ball Bearings 17x35x10mm Carving Machines

Design Features of the 7003C-2RZ P4 Precision Angular Contact Bearing

The 7003C-2RZ P4 Precision Angular Contact Ball Bearing is built using premium materials and advanced manufacturing techniques. Designed for applications that demand both speed and accuracy, such as high-speed spindles in carving machines, this bearing provides outstanding performance and reliability. Its robust construction ensures consistent precision and durability, even under challenging operating conditions.

Bearing Number	Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Weight(Kg)
	Inner Diameter	Outer Diameter	Width	Chamfer		Dynamic	Static	Grease	Oil	Weight(Kg)
	d	D	B	rsmin	r1smin	Cr	Cor	Non-contact	Non-contact	reference
7003C-2RZ	17	35	10	0.3	0.15	3800	2500	53000	/	0.04

Ring Material	Imported Premium-Grade Bearing Steel (803 Q, Sweden)
Roller Material	Imported Japanese AKS Steel Balls, Grade G2, or Imported Saint-Gobain Ceramic Balls, Grade G2
Cage Material	Bakelite Phenolic
Contact Angle	15°,25° & 40° available
Lubrication	Required Grease
Matched Arrangement	Available
Preload	Available
Number Of Bearings In Matched Set	2 pcs/set
Universal Matching Bearing	Yes,DB,DF,DT(Back to Back,Face to Face,Tandem)
Temperature Range	-30°C ~ +110°C
ABEC Rating Precision	P4 (ABEC7)P5,P2 available
CERTIFICATE	RoHS, IATF16949:2016
For Load Direction	Angular Contact
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes

7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines 0

7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines 1

7003C-2RZ P4 Precision Angular Contact Ball Bearing Key Design Features:

Dimensions:

Bore Diameter: 17 mm

Outer Diameter: 35 mm

Width: 10 mm

Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.

Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy.

High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.

Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.

Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision.

Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.

This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
